Image shown is representative and may differ from the actual product in size, proportions, and color shade
2.380 in
(60.45 mm)
4.120 in
(104.65 mm)
1/2"

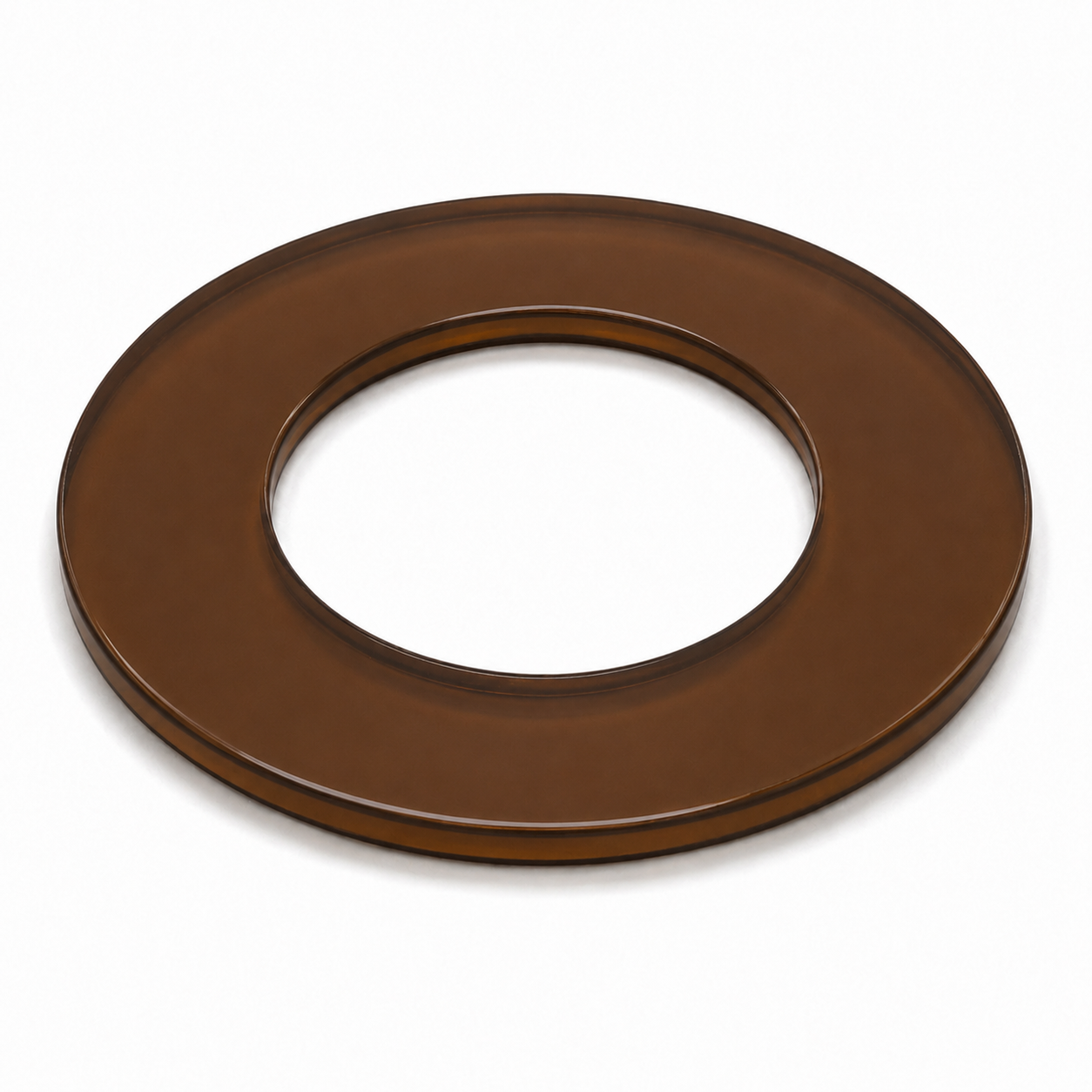

FFKM Canrez CP75TB11 Ring Gasket, Size: 150#-2"-RN-1/2"
Material: FFKM Canrez CP75TB11 Ring Gasket
Size: 150#-2"-RN-1/2" Ring Gasket
Part Number: CP75TB11-150#-2"-RN-1/2"
Canrez® (Canyon Components)
CP75TB11
FFKM (Perfluoroelastomer)
75
Shore A
Semiconductor Material, Filled with Polymer Nano Particles
Ultra High Temperature Material
Low Compression Set
Color: Translucent Brown
Detailed Description
CP75TB11-150#-2"-RN-1/2" is a Translucent Brown, 75 Shore A, FFKM (Perfluoroelastomer) Ring Gasket made from Canrez® (Canyon Components). It is a 75 durometer FFKM (Perfluoroelastomer). [Canrez® (Canyon Components) CP75TB11 is manufactured with the following features & specifications: Semiconductor Material, Filled with Polymer Nano Particles, Ultra High Temperature Material, Low Compression Set. CP75TB11-150#-2"-RN-1/2" is size 150#-2"-RN-1/2" Ring Gasket also referred to as 2 (Pipe Size) x 60.45mm (ID) x 104.65mm (OD) x 1/2" (Thickness). CP75TB11-150#-2"-RN-1/2" is a size 2, 150#-RN ASME Ring Gasket. Material: 75 Durometer FFKM Canrez CP75TB11 Ring Gasket Size: 150#-2"-RN-1/2", 2 Pipe Size X 60.45mm ID X 104.65mm OD X 1/2" Thickness
| Technical Specification | Value |
|---|---|
| Compound Number | CP75TB11 |
| Brand | Canrez® (Canyon Components) |
| Material | FFKM (Perfluoroelastomer) |
| Color | Translucent Brown |
| Durometer | 75 Shore A Hardness |
| High Temperature | 325 °C / 617 °F |
| Low Temperature | -10 °C / 14 °F |
| Geometry Specifications | |
| Type | Ring Gasket |
| Size | 150#-2"-RN-1/2" |
| Pipe Size | 2 |
| ID | 60.45 mm / 2.380 in |
| OD | 104.65 mm / 4.120 in |
| Thickness | 1/2" |
| Other Specifications | |
Semiconductor Material, Filled with Polymer Nano Particles | |
Canrez® CP75TB11 is a 75 shore A semi-translucent brown FFKM compound engineered for advanced semiconductor plasma processing environments where purity and durability are critical. This nano-polymer filled material delivers ultra low particle generation, low erosion rates, and excellent resistance to aggressive dry chemistries, making it ideal for O-rings and gaskets used in PECVD, ALD, HDPCVD, and plasma etch applications. It offers outstanding thermal stability, minimal outgassing, and strong elastic recovery for both static and select dynamic sealing, ensuring long service life in high energy environments. CP75TB11 is commonly compared to Kalrez® 9100 and is positioned as a cost-effective Canrez® alternative with comparable performance.
FFKM, or perfluoroelastomer, represents the highest level of elastomer performance for O-rings and gaskets, combining near universal chemical resistance with extreme temperature capability and low contamination characteristics. These materials are widely used in semiconductor manufacturing, pharmaceutical processing, and chemical industries where exposure to plasma, aggressive chemicals, and high temperatures is constant. High purity FFKM compounds like Canrez® CP75TB11 are specifically designed to minimize particle generation and maintain sealing integrity in critical environments. Compared to other popular FFKM materials such as Kalrez® or Chemraz®, Canrez® compounds are often selected as a preferred alternative due to competitive pricing, strong availability, and high performance.
Keywords: Canrez CP75TB11, CP75TB11, CP 75TB11, CP-75TB11, FFKM semiconductor O-rings, plasma resistant elastomer, low particle generation seals, Kalrez 9100 equivalent, nano polymer FFKM, high temperature sealing material, chemical resistant gasket, semiconductor sealing elastomer, PECVD ALD sealing rubber, Datasheet, TDS, Test Report, MTR, MSDS, SDS, Kalrez® 9100 O-rings, Kalrez® 9100 FFKM seals, Kalrez® 9100 perfluoroelastomer gasket material, Kalrez® 9100 chemically resistant compound, Kalrez® 9100 high temperature FFKM O-rings, Kalrez® 9100 semiconductor seals
