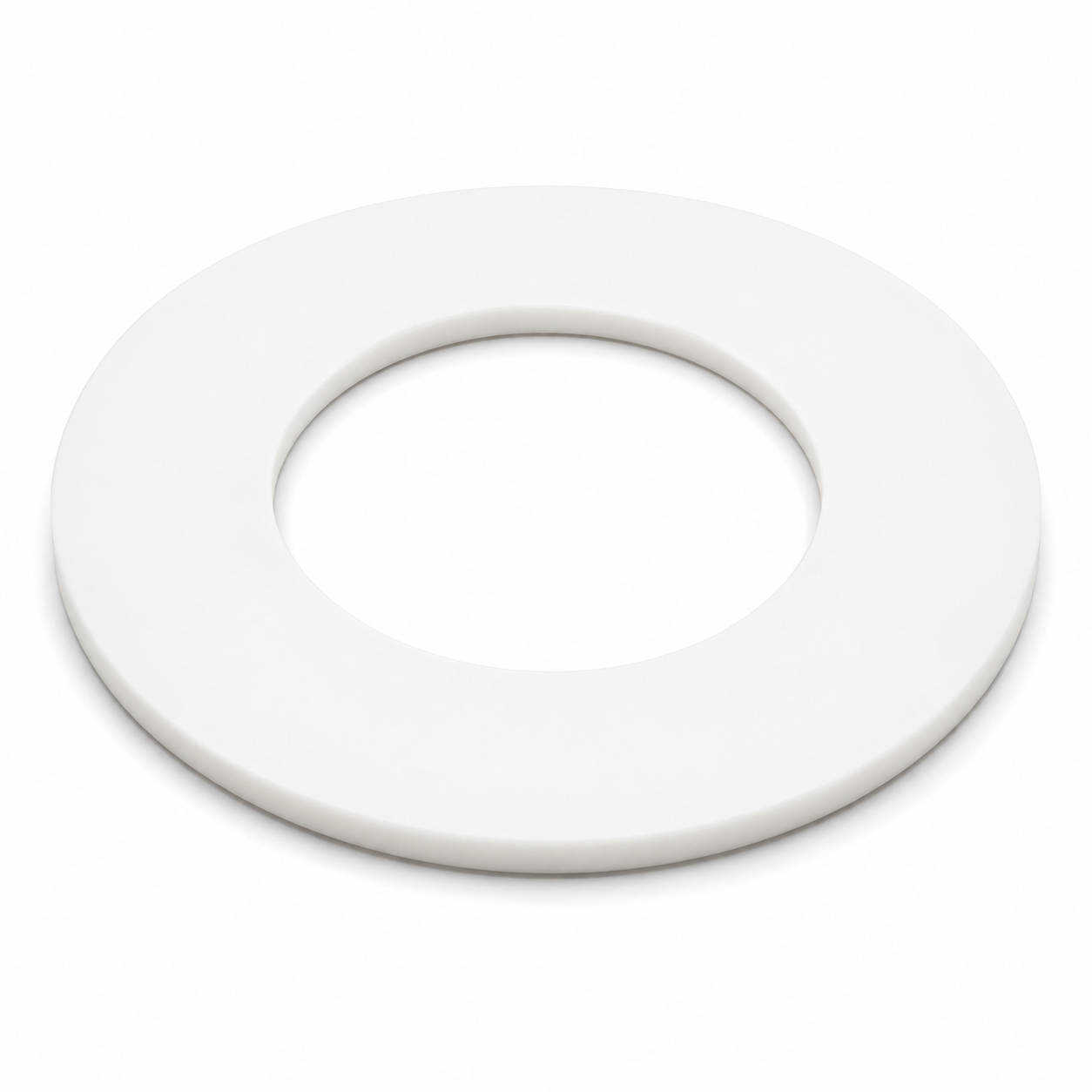

Image shown is representative and may differ from the actual product in size, proportions, and color shade
2.380 in
(60.45 mm)
4.120 in
(104.65 mm)
1/4"
FFKM Canrez CP75WH02 Ring Gasket, Size: 150#-2"-RN-1/4"
Material: FFKM Canrez CP75WH02 Ring Gasket
Size: 150#-2"-RN-1/4" Ring Gasket
Part Number: CP75WH02-150#-2"-RN-1/4"
Canrez® (Canyon Components)
CP75WH02
FFKM (CanRez®, Perfluoroelastomer)
75
Shore A
High Temperature Material
Steam Resistant
Color: White
Detailed Description
CP75WH02-150#-2"-RN-1/4" is a White, 75 Shore A, FFKM (CanRez®, Perfluoroelastomer) Ring Gasket made from Canrez® (Canyon Components). It is a 75 durometer FFKM (CanRez®, Perfluoroelastomer). [Canrez® (Canyon Components) CP75WH02 is manufactured with the following features & specifications: High Temperature Material, Steam Resistant, General Purpose Material. CP75WH02-150#-2"-RN-1/4" is size 150#-2"-RN-1/4" Ring Gasket also referred to as 2 (Pipe Size) x 60.45mm (ID) x 104.65mm (OD) x 1/4" (Thickness). CP75WH02-150#-2"-RN-1/4" is a size 2, 150#-RN ASME Ring Gasket. Material: 75 Durometer FFKM Canrez CP75WH02 Ring Gasket Size: 150#-2"-RN-1/4", 2 Pipe Size X 60.45mm ID X 104.65mm OD X 1/4" Thickness
| Technical Specification | Value |
|---|---|
| Compound Number | CP75WH02 |
| Brand | Canrez® (Canyon Components) |
| Material | FFKM (CanRez®, Perfluoroelastomer) |
| Color | White |
| Durometer | 75 Shore A Hardness |
| High Temperature | 320 °C / 608 °F |
| Low Temperature | -15 °C / 5 °F |
| Geometry Specifications | |
| Type | Ring Gasket |
| Size | 150#-2"-RN-1/4" |
| Pipe Size | 2 |
| ID | 60.45 mm / 2.380 in |
| OD | 104.65 mm / 4.120 in |
| Thickness | 1/4" |
