CS
0.050 in
(1.27 mm)
ID
0.042 in
(1.07 mm)
EPDM EP80PU00 O-Ring, Size: -002
Material: EPDM EP80PU00 O-Ring
Size: AS568 -002 O-Ring
Part Number: EP80PU00-OR-002
EP80PU00
EPDM (EPR, EPM)
80
Shore A
General Purpose Material
Color: Purple
Detailed Description

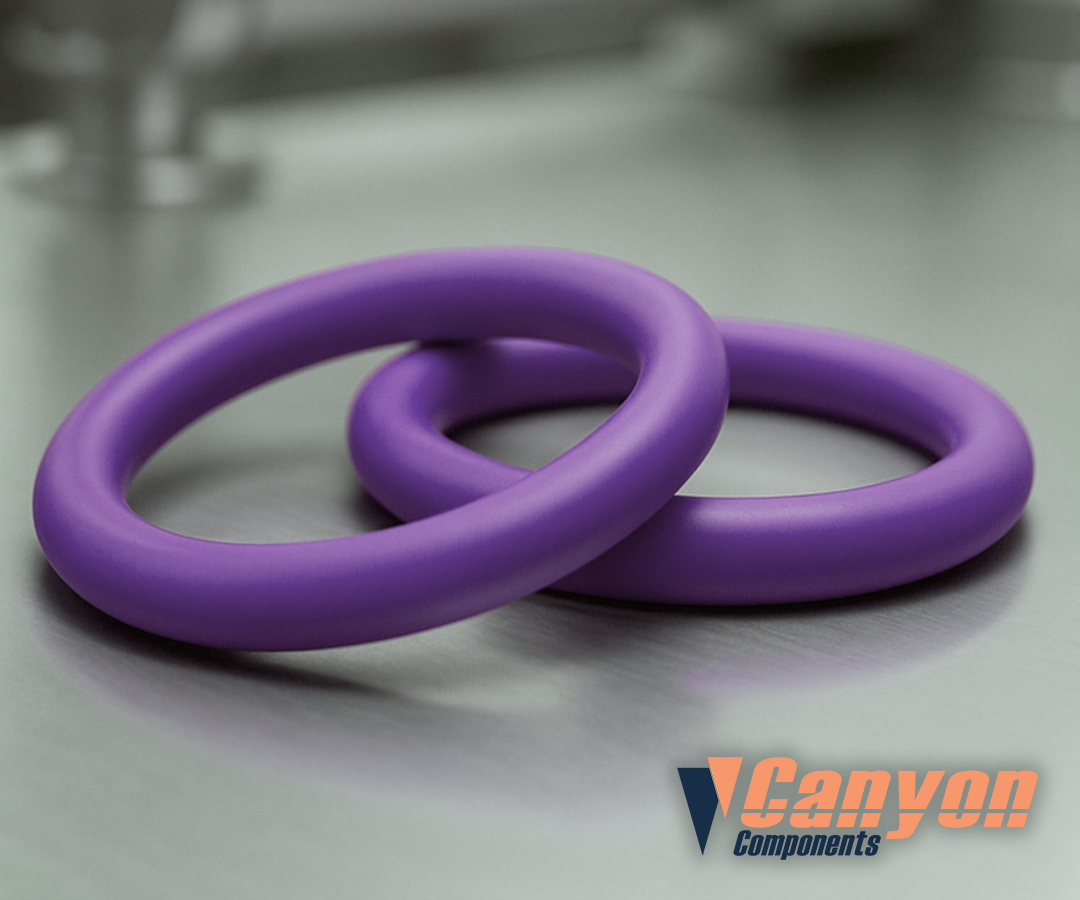

EP80PU00-OR-002 is a Purple, 80 Shore A, EPDM (EPR, EPM) O-Ring. EP80PU00 is manufactured with the following features & specifications: General Purpose Material. EP80PU00-OR-002 is AS568 size -002 O-Ring also referred to as 1.27mm (Cross Sectional Diameter (CS)) x 1.07mm (Inside Diameter (ID)).
Material: EPDM EP80PU00 O-Ring
Size: AS568 -002, 1.27mm CS X 1.07mm ID (0.050" CS X 0.042" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | EP80PU00 |
| Material | EPDM (EPR, EPM) |
| Color | Purple |
| Durometer | 80 Shore A |
| Geometry Specifications | |
| Cross Sectional Geometry | O-Ring |
| Size Standard | AS568 |
| Size | -002 |
| Cross Section (CS) | 1.27 mm / 0.050 in |
| Inside Diameter (ID) | 1.07 mm / 0.042 in |
