Image shown is representative and may differ from the actual product in size, proportions, and color shade
CS
0.139 in
(3.53 mm)
ID
5.234 in
(132.94 mm)

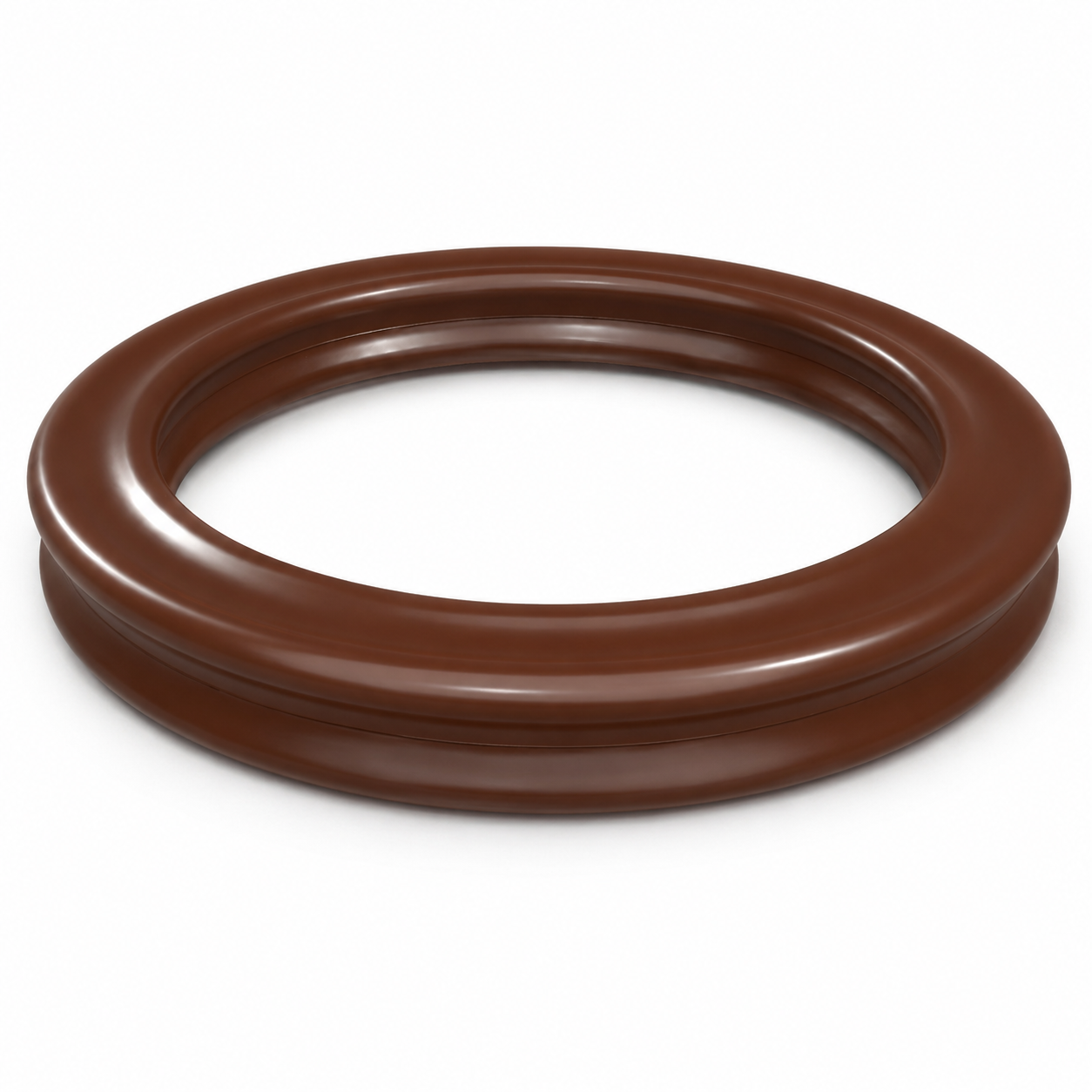

FSIL FS45BR80 X-Ring, Size: -252
Material: FSIL FS45BR80 X-Ring
Size: AS568 -252 X-Ring
Part Number: FS45BR80-XR-252
Color: Brown
Detailed Description
FS45BR80-XR-252 is a Brown, 45 Shore A, Fluorosilicone (FVMQ, FSIL) X-Ring. It is a 45 durometer Fluorosilicone (FVMQ, FSIL). FS45BR80-XR-252 is AS568 size -252 X-Ring also referred to as 3.53mm (Cross Sectional Diameter (CS)) x 132.94mm (Inside Diameter (ID)). Material: 45 Durometer FSIL FS45BR80 X-Ring Size: AS568 -252, 3.53mm CS X 132.94mm ID (0.139" CS X 5.234" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | FS45BR80 |
| Material | Fluorosilicone (FVMQ, FSIL) |
| Color | Brown |
| Durometer | 45 Shore A Hardness |
| High Temperature | 125 °C / 257 °F |
| Low Temperature | -75 °C / -103 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | X-Ring |
| Size Standard | AS568 |
| Size | -252 |
| Cross Section (CS) | 3.53 mm / 0.139 in |
| Inside Diameter (ID) | 132.94 mm / 5.234 in |
