CS
0.070 in
(1.78 mm)
ID
0.208 in
(5.28 mm)
FS70GY52-OR-009
Size: AS568-009 O-Ring
CanGuard™ (Canyon Components)
FS70GY52
Fluorosilicone (FVMQ, FSIL)
70
Shore A
MIL-DTL-83528 Type C
EMI Nickel and Aluminum Filled
EMI RFI Industry Page
Color: Gray
Detailed Description

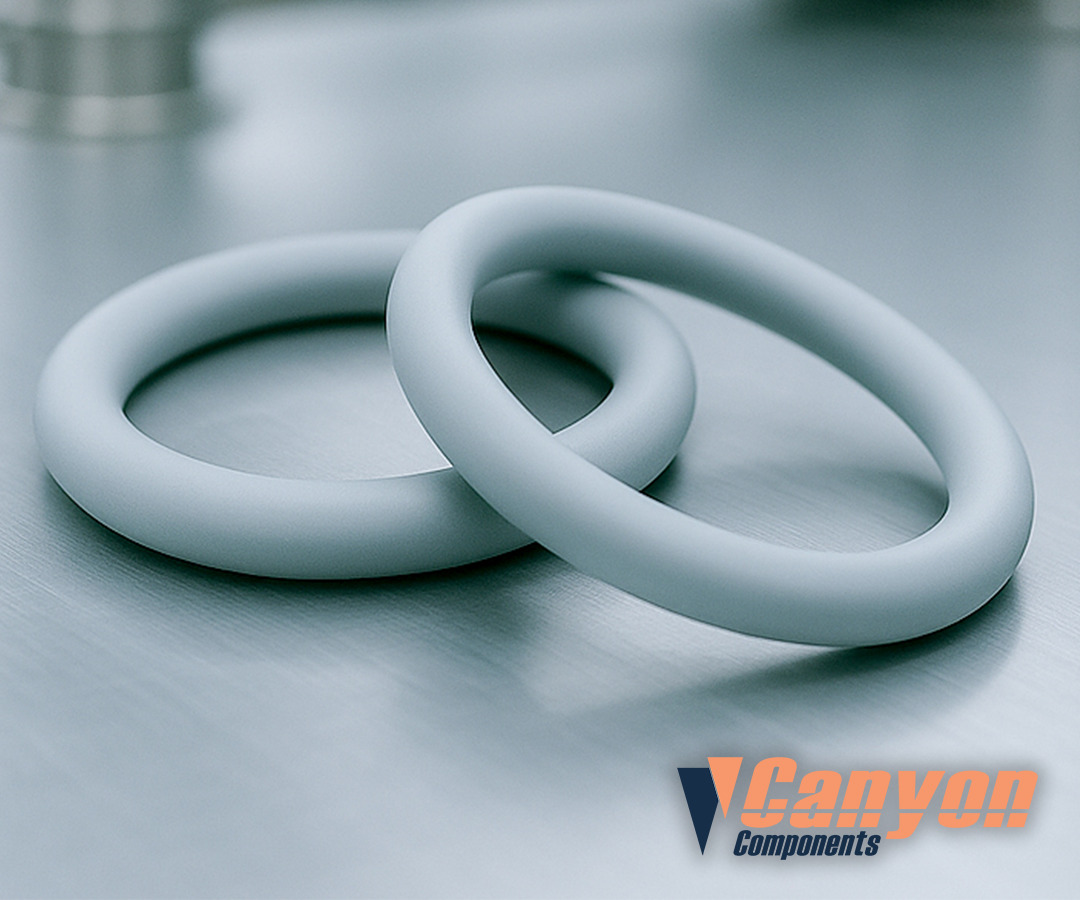

FS70GY52-OR-009 is a Gray, 70 Shore A, Fluorosilicone (FVMQ, FSIL) O-Ring made from CanGuard™ (Canyon Components). CanGuard™ (Canyon Components) FS70GY52 is manufactured with the following features & specifications: MIL-DTL-83528 Type C, EMI Nickel and Aluminum Filled, EMI RFI Industry Page. FS70GY52-OR-009 is AS568 size -009 O-Ring also referred to as 1.78mm (Cross Sectional Diameter (CS)) x 5.28mm (Inside Diameter (ID)).
| Technical Specification | Value |
|---|---|
| Compound Number | FS70GY52 |
| Brand | CanGuard™ (Canyon Components) |
| Material | Fluorosilicone (FVMQ, FSIL) |
| Color | Gray |
| Durometer | 70 Shore A |
| High Temperature | 125 °C / 257 °F |
| Low Temperature | -55 °C / -67 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | O-Ring |
| Size Standard | AS568 |
| Size | -009 |
| Cross Section (CS) | 1.78 mm / 0.070 in |
| Inside Diameter (ID) | 5.28 mm / 0.208 in |
| Other Specifications | |
MIL-DTL-83528 Type C | |
EMI Nickel and Aluminum Filled | |
