Image shown is representative and may differ from the actual product in size, proportions, and color shade
CS
0.139 in
(3.53 mm)
ID
5.234 in
(132.94 mm)

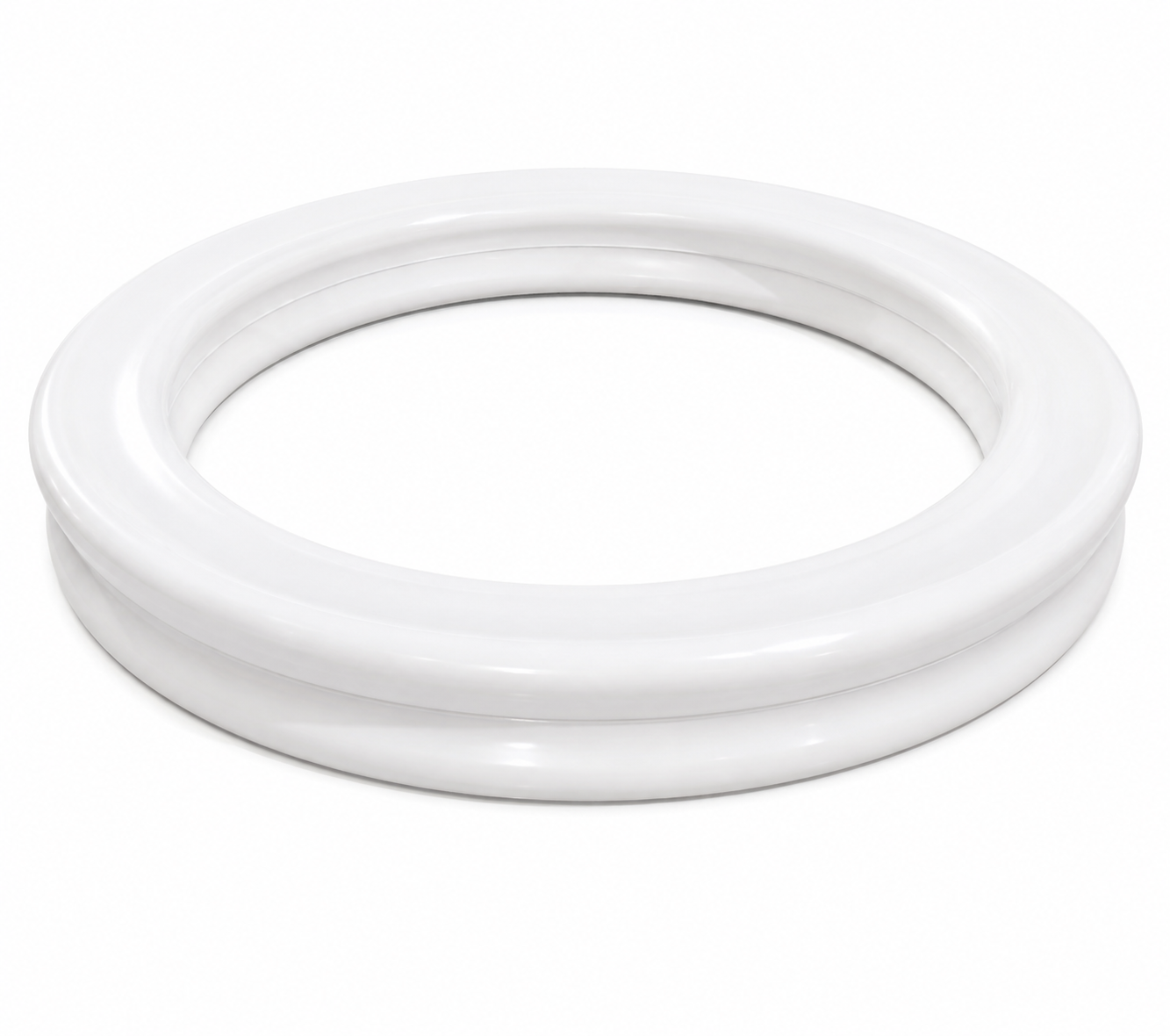

PTFE PT60WH09 X-Ring, Size: -252
Material: PTFE PT60WH09 X-Ring
Size: AS568 -252 X-Ring
Part Number: PT60WH09-XR-252
Color: White
Detailed Description
PT60WH09-XR-252 is a White, 60 Shore D, PTFE (Teflon®) X-Ring. It is a 60 durometer PTFE (Teflon®). PT60WH09 is manufactured with the following features & specifications: 15% Mineral Fill, FDA Compliant, USP Class VI. PT60WH09-XR-252 is AS568 size -252 X-Ring also referred to as 3.53mm (Cross Sectional Diameter (CS)) x 132.94mm (Inside Diameter (ID)). Material: 60 Durometer PTFE PT60WH09 X-Ring Size: AS568 -252, 3.53mm CS X 132.94mm ID (0.139" CS X 5.234" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | PT60WH09 |
| Material | PTFE (Teflon®) |
| Color | White |
| Durometer | 60 Shore D Hardness |
| High Temperature | 288 °C / 550 °F |
| Low Temperature | -129 °C / -200 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | X-Ring |
| Size Standard | AS568 |
| Size | -252 |
| Cross Section (CS) | 3.53 mm / 0.139 in |
| Inside Diameter (ID) | 132.94 mm / 5.234 in |
| Other Specifications | |
15% Mineral Fill | |
FDA Compliant | |
USP Class VI | |
