Image shown is representative and may differ from the actual product in size, proportions, and color shade
2.380 in
(60.45 mm)
6.000 in
(152.40 mm)
4
0.750 in
(19.05 mm)
4.750 in
(120.65 mm)
1/2"

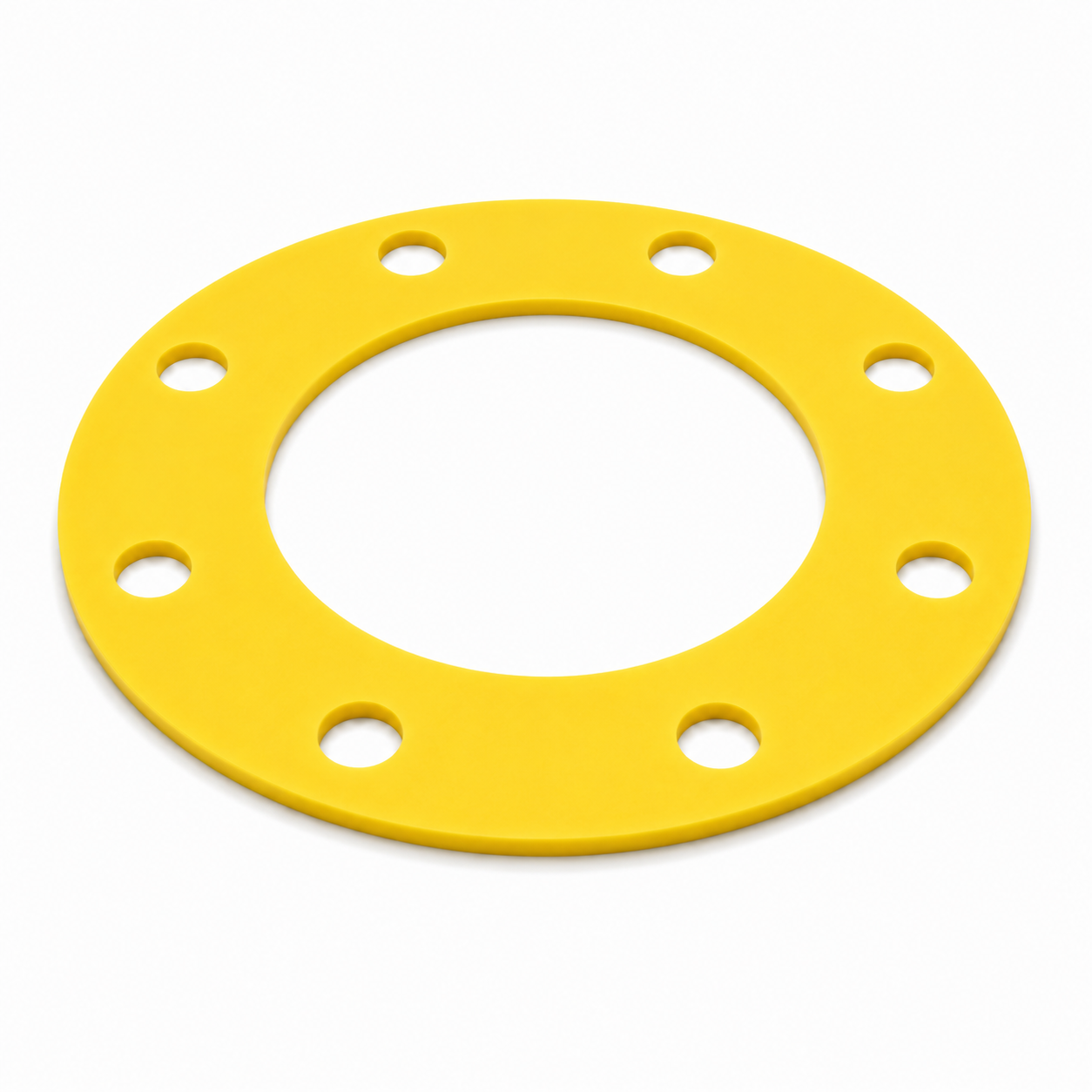

PU PU70YE01 Full Face Gasket, Size: 150#-2"-FF-1/2"
Material: PU PU70YE01 Full Face Gasket
Size: 150#-2"-FF-1/2" Full Face Gasket
Part Number: PU70YE01-150#-2"-FF-1/2"
Color: Yellow
Detailed Description
PU70YE01-150#-2"-FF-1/2" is a Yellow, 70 Shore A, Gum Polyurethane (AU, PU) Full Face Gasket, a Ester Polyurethane product. It is a 70 durometer Polyurethane (AU, PU). [PU70YE01 is manufactured with the following features & specifications: General Purpose Material. PU70YE01-150#-2"-FF-1/2" is a size 2, 150#-FF ASME Full Face Gasket. Material: 70 Durometer PU PU70YE01 Full Face Gasket Size: 150#-2"-FF-1/2", 2 Pipe Size X 60.45mm ID X 152.4mm OD X 4 Bolt Qty X 19.050mm Bolt Dia. X 120.650mm Bolt Circle X 1/2" Thickness
| Technical Specification | Value |
|---|---|
| Compound Number | PU70YE01 |
| Material | Polyurethane (AU, PU) |
| Subtype | Ester Polyurethane |
| Cure | Gum |
| Color | Yellow |
| Durometer | 70 Shore A Hardness |
| High Temperature | 125 °C / 257 °F |
| Low Temperature | -55 °C / -67 °F |
| Geometry Specifications | |
| Type | Full Face Gasket |
| Size | 150#-2"-FF-1/2" |
| Pipe Size | 2 |
| ID | 60.45 mm / 2.380 in |
| OD | 152.40 mm / 6.000 in |
| Bolt Qty | 4 |
| Bolt Dia. | 19.05 mm / 0.750 in |
| Bolt Circle | 120.65 mm / 4.750 in |
| Thickness | 1/2" |
