Image shown is representative and may differ from the actual product in size, proportions, and color shade
3.500 in
(88.90 mm)
5.380 in
(136.65 mm)
1/2"

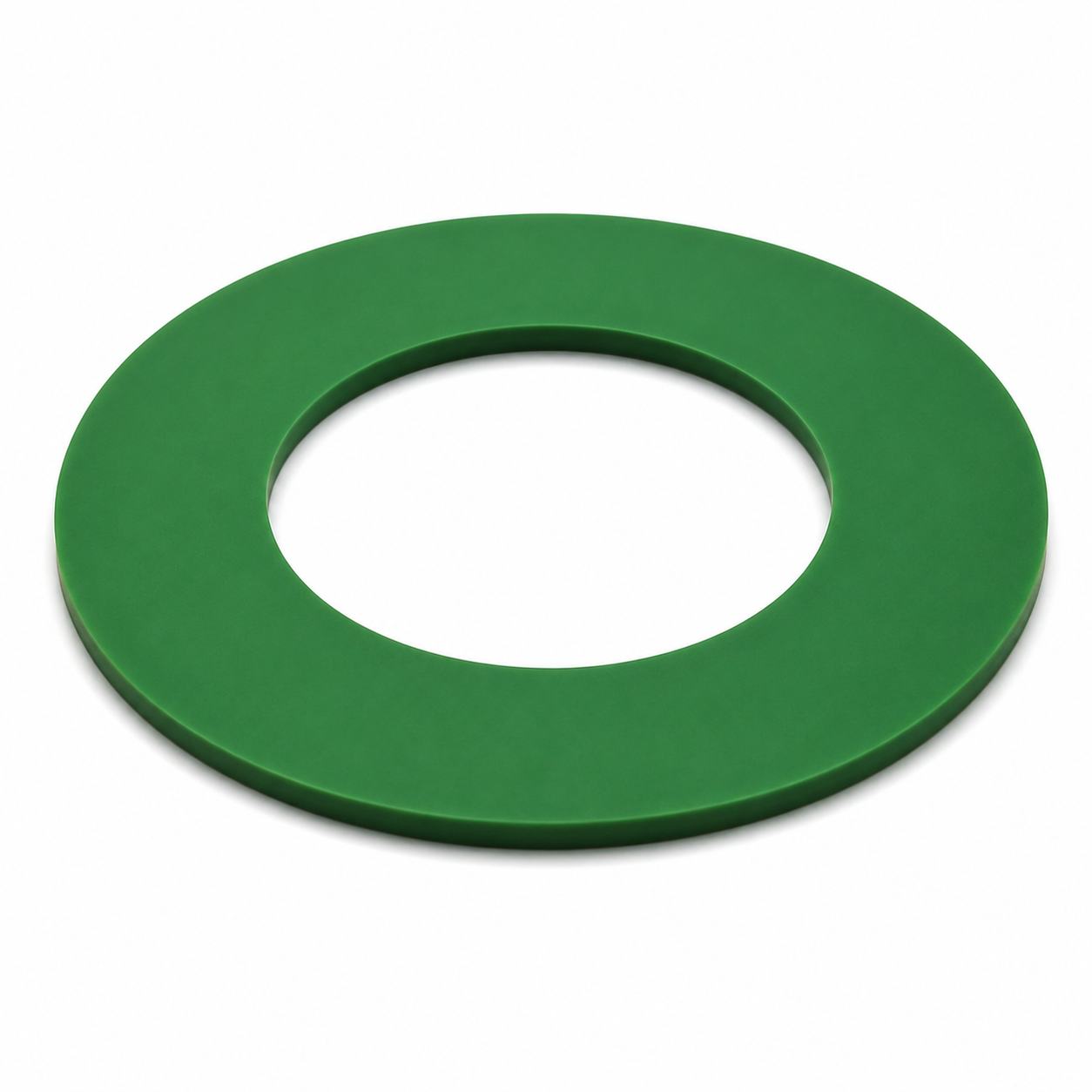

FKM Parker 16327-75 Ring Gasket, Size: 150#-3"-RN-1/2"
Material: FKM Parker 16327-75 Ring Gasket
Size: 150#-3"-RN-1/2" Ring Gasket
Part Number: 16327-75-150#-3"-RN-1/2"
Color: Green
Detailed Description
16327-75-150#-3"-RN-1/2" is a Green, 75 Shore A, FKM (Viton®) Ring Gasket made from Parker Seal® (Parker), a FKM Type GF (Viton®) product. It is a 75 durometer FKM (Viton®). [Parker Seal® (Parker) 16327-75 is manufactured with the following features & specifications: General Purpose Material. 16327-75-150#-3"-RN-1/2" is size 150#-3"-RN-1/2" Ring Gasket also referred to as 3 (Pipe Size) x 88.9mm (ID) x 136.65mm (OD) x 1/2" (Thickness). 16327-75-150#-3"-RN-1/2" is a size 3, 150#-RN ASME Ring Gasket. Material: 75 Durometer FKM Parker 16327-75 Ring Gasket Size: 150#-3"-RN-1/2", 3 Pipe Size X 88.9mm ID X 136.65mm OD X 1/2" Thickness
| Technical Specification | Value |
|---|---|
| Compound Number | 16327-75 |
| Brand | Parker Seal® (Parker) |
| Material | FKM (Viton®) |
| Subtype | FKM Type GF (Viton®) |
| Color | Green |
| Durometer | 75 Shore A Hardness |
| High Temperature | 204 °C / 399 °F |
| Low Temperature | -26 °C / -15 °F |
| Geometry Specifications | |
| Type | Ring Gasket |
| Size | 150#-3"-RN-1/2" |
| Pipe Size | 3 |
| ID | 88.90 mm / 3.500 in |
| OD | 136.65 mm / 5.380 in |
| Thickness | 1/2" |
