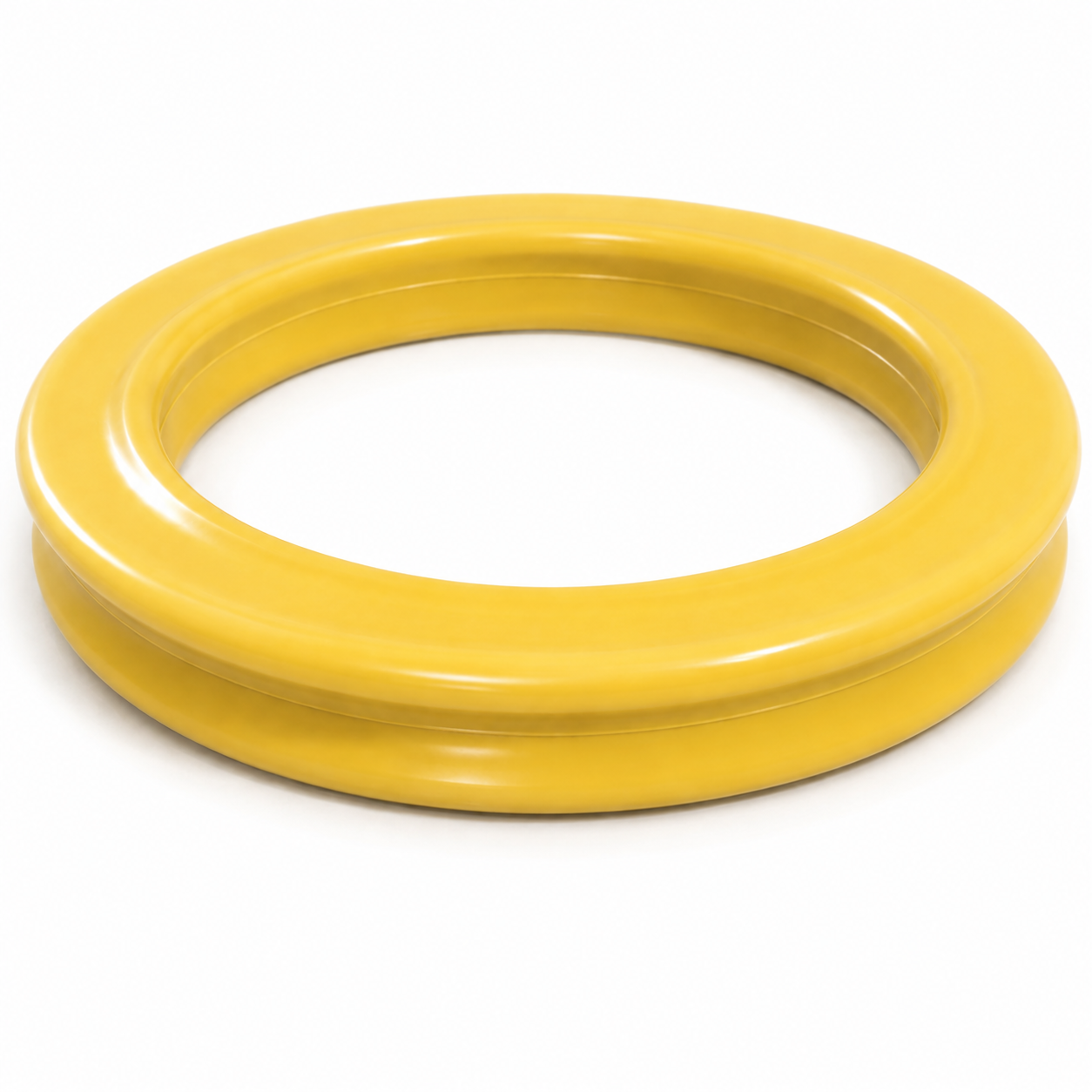

Image shown is representative and may differ from the actual product in size, proportions, and color shade

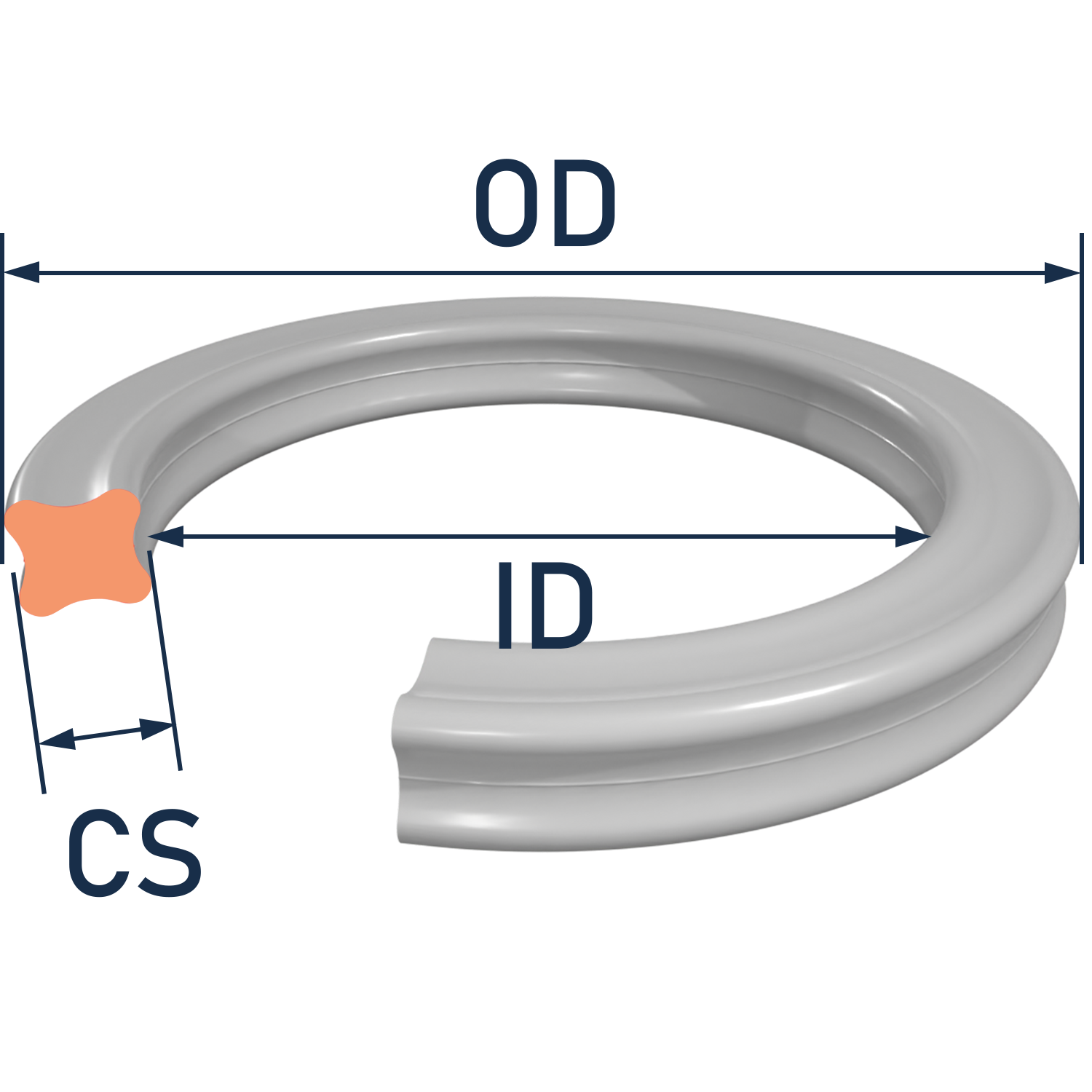

0.139 in
(3.53 mm)
5.234 in
(132.94 mm)
FSIL Parker 40713-75 X-Ring, Size: -252
Material: FSIL Parker 40713-75 X-Ring
Size: AS568 -252 X-Ring
Part Number: 40713-75-XR-252
Color: Yellow
Detailed Description
40713-75-XR-252 is a Yellow, 75 Shore A, Fluorosilicone (FVMQ, FSIL) X-Ring made from Parker Seal® (Parker). It is a 75 durometer Fluorosilicone (FVMQ, FSIL). Parker Seal® (Parker) 40713-75 is manufactured with the following features & specifications: General Purpose Material. 40713-75-XR-252 is AS568 size -252 X-Ring also referred to as 3.53mm (Cross Sectional Diameter (CS)) x 132.94mm (Inside Diameter (ID)). Material: 75 Durometer FSIL Parker 40713-75 X-Ring Size: AS568 -252, 3.53mm CS X 132.94mm ID (0.139" CS X 5.234" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | 40713-75 |
| Brand | Parker Seal® (Parker) |
| Material | Fluorosilicone (FVMQ, FSIL) |
| Color | Yellow |
| Durometer | 75 Shore A Hardness |
| High Temperature | 177 °C / 351 °F |
| Low Temperature | -68 °C / -90 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | X-Ring |
| Size Standard | AS568 |
| Size | -252 |
| Cross Section (CS) | 3.53 mm / 0.139 in |
| Inside Diameter (ID) | 132.94 mm / 5.234 in |
