Image shown is representative and may differ from the actual product in size, proportions, and color shade
2.380 in
(60.45 mm)
4.120 in
(104.65 mm)
1/2"

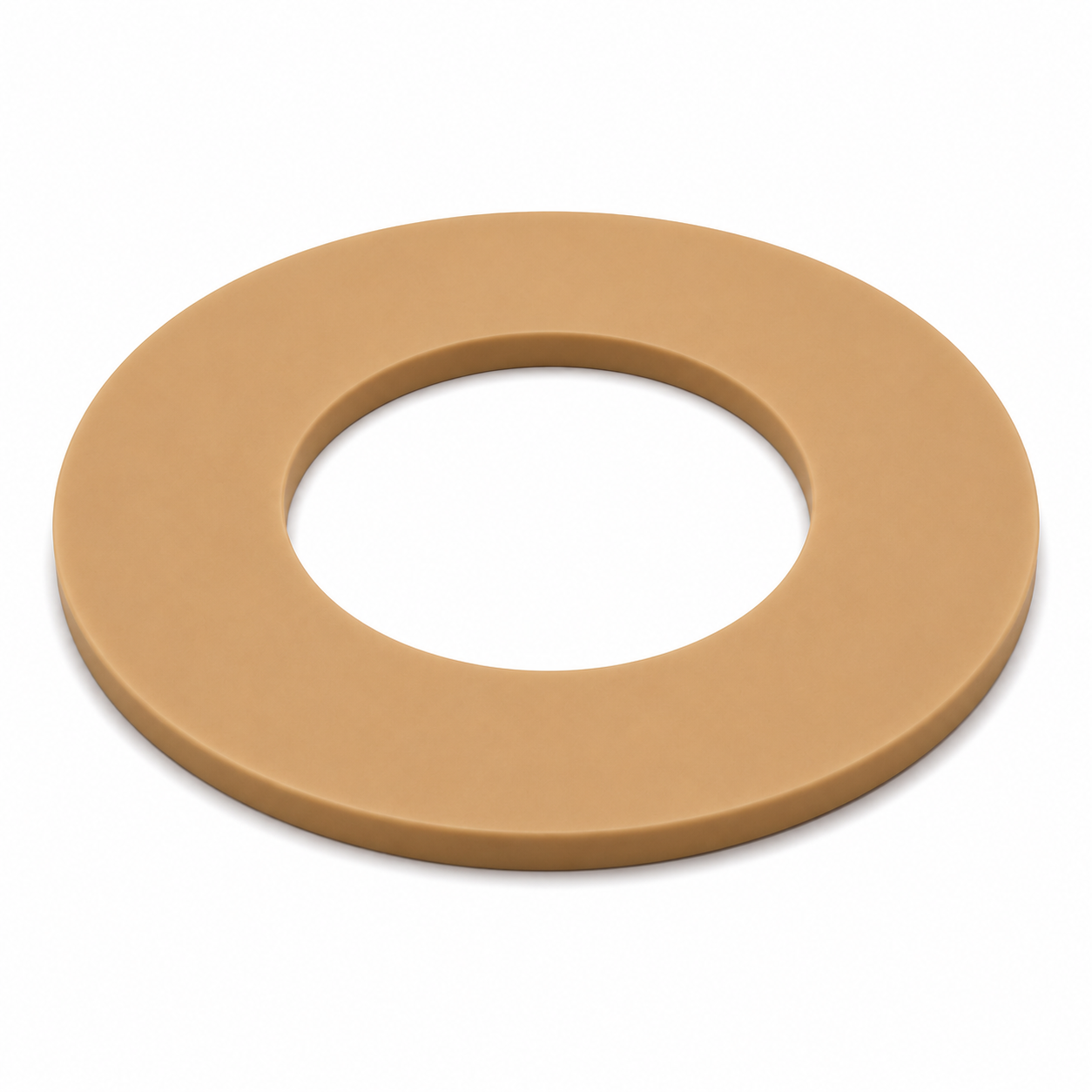

FKM Parker HF359-80 Ring Gasket, Size: 150#-2"-RN-1/2"
Material: FKM Parker HF359-80 Ring Gasket
Size: 150#-2"-RN-1/2" Ring Gasket
Part Number: HF359-80-150#-2"-RN-1/2"
Parker Seal® (Parker)
HF359-80
FKM (Viton®)
80
Shore A
HiFluor
Color: Tan
Detailed Description
HF359-80-150#-2"-RN-1/2" is a Tan, 80 Shore A, FKM (Viton®) Ring Gasket made from Parker Seal® (Parker). It is a 80 durometer FKM (Viton®). [Parker Seal® (Parker) HF359-80 is manufactured with the following features & specifications: HiFluor. HF359-80-150#-2"-RN-1/2" is size 150#-2"-RN-1/2" Ring Gasket also referred to as 2 (Pipe Size) x 60.45mm (ID) x 104.65mm (OD) x 1/2" (Thickness). HF359-80-150#-2"-RN-1/2" is a size 2, 150#-RN ASME Ring Gasket. Material: 80 Durometer FKM Parker HF359-80 Ring Gasket Size: 150#-2"-RN-1/2", 2 Pipe Size X 60.45mm ID X 104.65mm OD X 1/2" Thickness
| Technical Specification | Value |
|---|---|
| Compound Number | HF359-80 |
| Brand | Parker Seal® (Parker) |
| Material | FKM (Viton®) |
| Color | Tan |
| Durometer | 80 Shore A Hardness |
| High Temperature | 204 °C / 399 °F |
| Low Temperature | -26 °C / -15 °F |
| Geometry Specifications | |
| Type | Ring Gasket |
| Size | 150#-2"-RN-1/2" |
| Pipe Size | 2 |
| ID | 60.45 mm / 2.380 in |
| OD | 104.65 mm / 4.120 in |
| Thickness | 1/2" |
| Other Specifications | |
HiFluor | |
