HNBR HN70GR00 O-Ring, Size: -108
Material: HNBR HN70GR00 O-Ring
Size: AS568 -108 O-Ring
Part Number: HN70GR00-OR-108
HN70GR00
HNBR (Hydrogenated Nitrile)
70
Shore A
General Purpose Material
Color: Green
Detailed Description

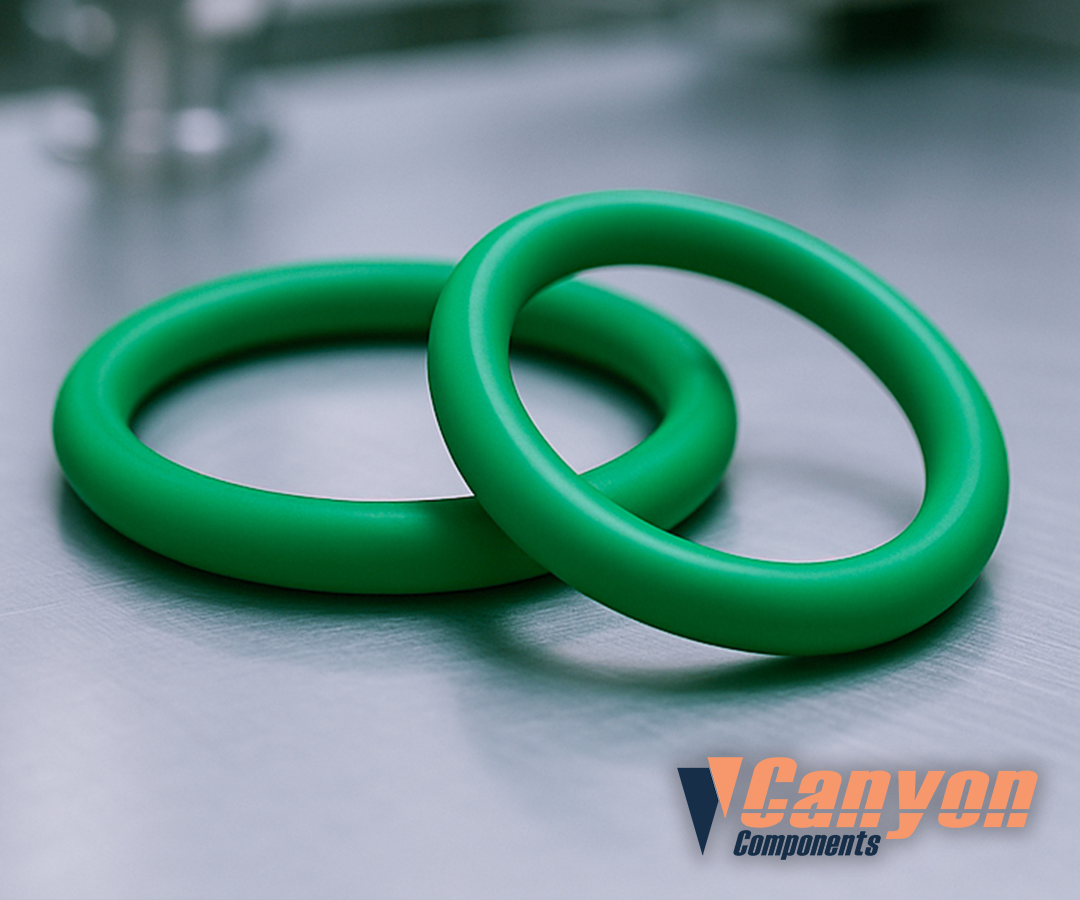

HN70GR00-OR-108 is a Green, 70 Shore A, HNBR (Hydrogenated Nitrile) O-Ring. HN70GR00 is manufactured with the following features & specifications: General Purpose Material. HN70GR00-OR-108 is AS568 size -108 O-Ring also referred to as 2.62mm (Cross Sectional Diameter (CS)) x 6.02mm (Inside Diameter (ID)).
Material: HNBR HN70GR00 O-Ring
Size: AS568 -108, 2.62mm CS X 6.02mm ID (0.103" CS X 0.237" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | HN70GR00 |
| Material | HNBR (Hydrogenated Nitrile) |
| Color | Green |
| Durometer | 70 Shore A |
| High Temperature | 165 °C / 329 °F |
| Low Temperature | -35 °C / -31 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | O-Ring |
| Size Standard | AS568 |
| Size | -108 |
| Cross Section (CS) | 2.62 mm / 0.103 in |
| Inside Diameter (ID) | 6.02 mm / 0.237 in |
