SIL SI70YE00 O-Ring, Size: -312
Material: SIL SI70YE00 O-Ring
Size: AS568 -312 O-Ring
Part Number: SI70YE00-OR-312
SI70YE00
Silicone (VMQ)
70
Shore A
General Purpose Material
Color: Yellow
Detailed Description

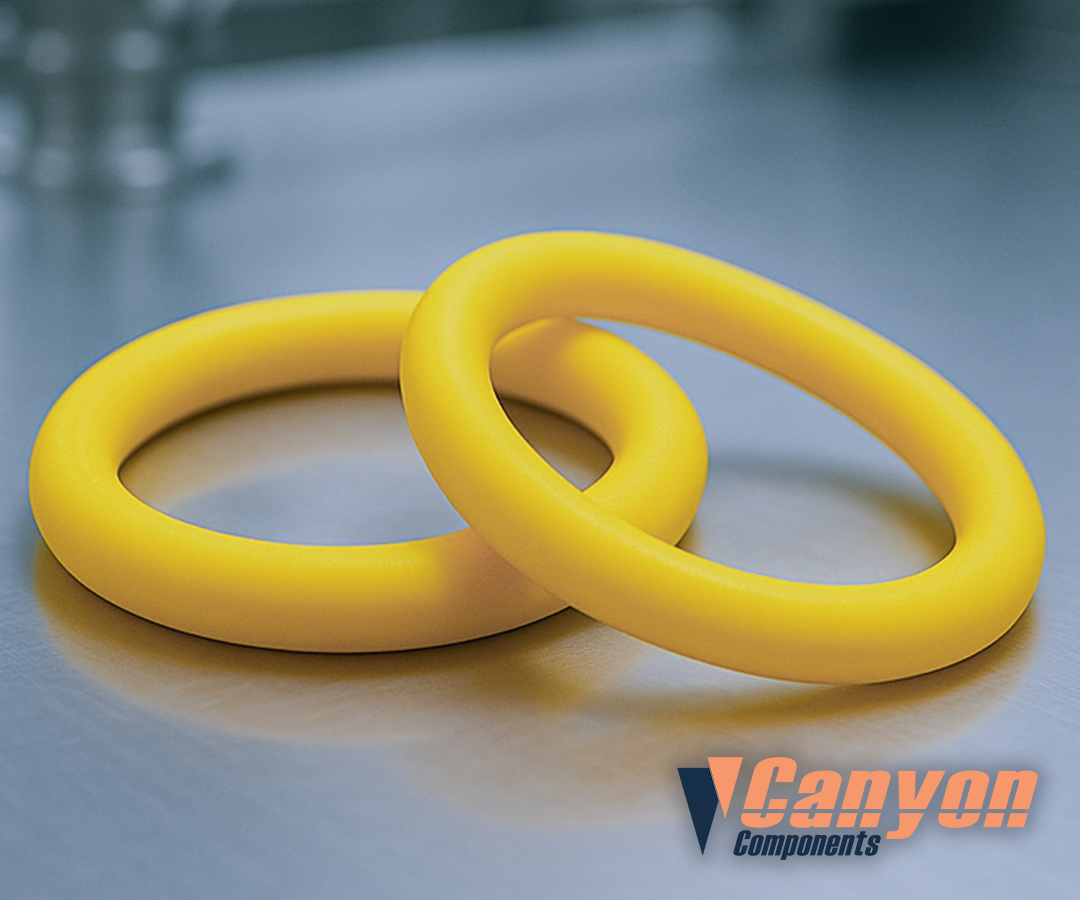

SI70YE00-OR-312 is a Yellow, 70 Shore A, Silicone (VMQ) O-Ring. SI70YE00 is manufactured with the following features & specifications: General Purpose Material. SI70YE00-OR-312 is AS568 size -312 O-Ring also referred to as 5.33mm (Cross Sectional Diameter (CS)) x 15.24mm (Inside Diameter (ID)).
Material: SIL SI70YE00 O-Ring
Size: AS568 -312, 5.33mm CS X 15.24mm ID (0.210" CS X 0.600" ID)
| Technical Specification | Value |
|---|---|
| Compound Number | SI70YE00 |
| Material | Silicone (VMQ) |
| Color | Yellow |
| Durometer | 70 Shore A |
| High Temperature | 205 °C / 401 °F |
| Low Temperature | -60 °C / -76 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | O-Ring |
| Size Standard | AS568 |
| Size | -312 |
| Cross Section (CS) | 5.33 mm / 0.210 in |
| Inside Diameter (ID) | 15.24 mm / 0.600 in |
