FFKM Sanitary Gaskets
High-Purity Perfluoroelastomer Sealing Solutions
FFKM (perfluoroelastomer) sanitary gaskets are designed for high-purity, high-temperature, and chemically aggressive environments where contamination control and material integrity are critical. Commonly used as tri-clamp® sanitary gaskets, FFKM provides superior performance in applications involving Steam In Place (SIP), Clean In Place (CIP), and aggressive process media. In addition to sanitary gaskets, FFKM is widely used in O-rings, custom molded parts, and tubes for complete hygienic sealing systems.
At Canyon Components, Canrez® FFKM sanitary gaskets are engineered to meet stringent regulatory and performance requirements, including USP Class VI, FDA compliance (21 CFR 177.2600), and high-purity processing standards. Available in standard configurations such as tri-clamp® (tri-clover) gaskets, 40MP, 42MP, 4MO, flanged gaskets, and Schedule V designs, Canrez® FFKM offers exceptional durability, chemical resistance, and thermal stability. Compared to Kalrez® and Chemraz®, Canrez® provides excellent performance with improved availability and cost efficiency, making it a strong choice for sanitary sealing applications.
FFKM sanitary gaskets are particularly valuable in processes involving repeated sterilization cycles, high temperature steam exposure, and aggressive cleaning chemicals, where traditional elastomers may degrade, swell, or contaminate the system. Canyon Components engineers can assist in selecting the optimal compound and gasket configuration to meet both performance and compliance requirements.
Common names include: FFKM, Perfluoroelastomer, Perfluorinated Rubber.
Trade names: Canrez®, Kalrez®, Chemraz®, Simriz®, Parofluor®.
Relevant Specifications: Series A DIN32676, Series B ISO1127, Series C ASME BPE, ISO 2852, SMS 3019, BS 4825-3, SCH 5 BS, Special Sizes
FFKM Sanitary Gaskets from Canyon Components providing excellent chemical, heat, and compression resistance in critical sealing applications.

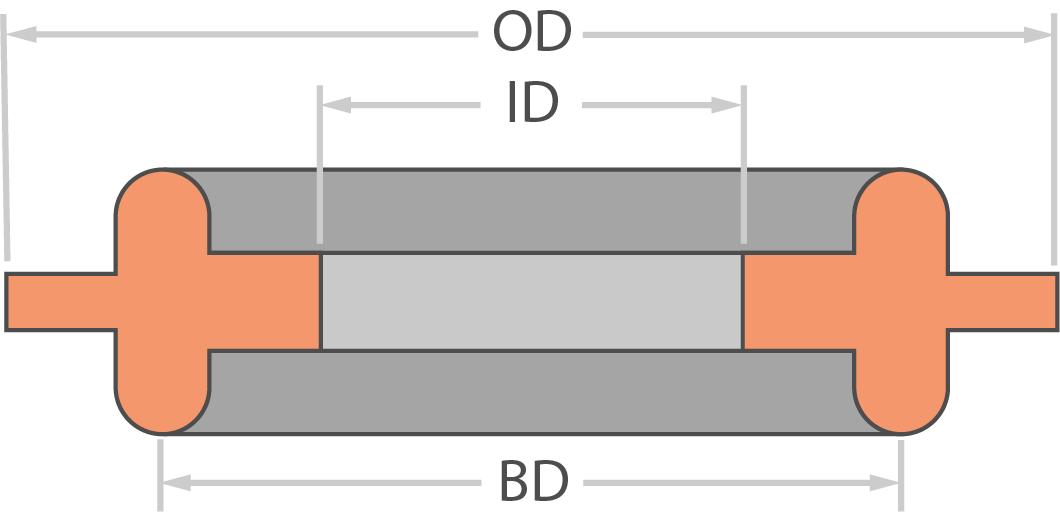

| Description | Dimensions (in) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Subtype | Size | Size (in) | Code | ID | OD | BD | W BD | Thk ID | Thk Bead | Thk OD | |
| 1/4" 40MP Type 1 | 42MP Mini Gasket | 1/4 | 0.25 | 025 | 0.19 | 0.86 | 0.085 | 0.178 | ||||
| 3/8" 40MP Type 1 | 42MP Mini Gasket | 3/8 | 0.375 | 0375 | 0.28 | 0.86 | 0.085 | 0.178 | ||||
| 1/2" 40MP Type 1 | 42MP Mini Gasket | 1/2 | 0.5 | 050 | 0.38 | 0.86 | 0.085 | 0.178 | ||||
| 3/4" 40MP Type 1 | 42MP Mini Gasket | 3/4 | 0.75 | 075 | 0.62 | 0.86 | 0.085 | 0.178 | ||||
| 1" 40MP Type 1 | 1 | 1 | 100 | 0.9 | 1.984 | 1.718 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 1-1/2" 40MP Type 1 | 1-1/2 | 1.5 | 150 | 1.4 | 1.984 | 1.718 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 2" 40MP Type 1 | 2 | 2 | 200 | 1.9 | 2.515 | 2.218 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 2-1/2" 40MP Type 1 | 2-1/2 | 2.5 | 250 | 2.4 | 3.05 | 2.781 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 3" 40MP Type 1 | 3 | 3 | 300 | 2.9 | 3.579 | 3.281 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 4" 40MP Type 1 | 4 | 4 | 400 | 3.87 | 4.682 | 4.344 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 5" 40MP Type 1 | 40MO | 5 | 5 | 500 | 4.78 | 5.687 | 5.296 | 0.094 | 0.085 | 0.203 | 0.075 | |
| 6" 40MP Type 1 | 40MO | 6 | 6 | 600 | 5.82 | 6.507 | 6.156 | 0.094 | 0.085 | 0.203 | 0.075 | |
| 8" 40MP Type 1 | 40MO | 8 | 8 | 800 | 7.81 | 8.57 | 8.165 | 0.094 | 0.085 | 0.238 | 0.075 | |
| 10" 40MP Type 1 | 40MO | 10 | 10 | 1000 | 9.81 | 10.57 | 10.16 | 0.094 | 0.085 | 0.238 | 0.075 | |
| 12" 40MP Type 1 | 40MO | 12 | 12 | 1200 | 11.8 | 12.57 | 12.15 | 0.094 | 0.085 | 0.238 | 0.075 | |
Materials Available for FFKM Sanitary Gaskets
This table shows many of our standard materials and links out to our O-ring store. Get in touch with us if you need a custom gasket, custom molded part, or non-standard geometry!
Canyon Components stocks Canrez and Kalrez Sanitary Gaskets in standard sizes and offers custom molded FFKM part options.
Filter by
Temperature Search (°C)
Durometer
Material Brand
Material Compliance
Specification
Size Search
___X____
42MP Sanitary Gaskets
42MP sanitary gaskets for Tri-Clamp® fittings in food processing, dairy, beverage, and pharmaceutical systems. Hygienic seals with excellent durability and cleanability.
40MP Tri-Clamp® Sanitary Gaskets - Type 1
40MP Tri-Clamp® sanitary gaskets for food processing, dairy, beverage, and pharmaceutical applications. Hygienic seals designed for reliable performance and easy cleaning.
40MPF Tri-Clamp® Sanitary Gaskets - Type 2 Flanged
Explore 40MPF Type 2 flanged sanitary gaskets for Tri-Clamp® systems. Designed for secure alignment, reliable sealing, and sanitary performance in food processing, dairy, beverage, pharmaceutical, and biotech applications
ASME BPE Sanitary Gaskets
ASME BPE sanitary gaskets for biopharmaceutical, pharmaceutical, food, and high-purity processing systems. Hygienic seals designed for cleanability, compliance, and reliability.
Canrez® FFKM Sanitary Gaskets
Discover FFKM sanitary gaskets designed for high purity and chemical resistance in food, pharmaceutical, and biotech applications. Explore Canrez® FFKM solutions for reliable sealing, compliance, and clean processing environments.
Kalrez® FFKM Sanitary Gaskets
Kalrez® FFKM sanitary gaskets for food, dairy, and pharma applications with FDA compliance, high purity, chemical resistance, and reliable sealing in CIP and SIP systems.
Features of FFKM Sanitary Gaskets, O-Rings, & Custom Parts
- Canrez® FFKM sanitary gaskets are available in tri-clamp® (tri-clover) configurations, including 40MP, 42MP, 4MO, flanged, and Schedule V designs
- FFKM sanitary gaskets provide excellent resistance to Steam In Place (SIP) and Clean In Place (CIP) processes, maintaining integrity through repeated sterilization cycles
- FFKM perfluoroelastomer materials meet USP Class VI and FDA (21 CFR 177.2600) compliance requirements, supporting use in regulated industries
- Canrez® FFKM sanitary gaskets offer exceptional chemical resistance to cleaning agents, solvents, acids, and process fluids
- FFKM sanitary gaskets exhibit low extractables and low permeability, helping maintain product purity and prevent contamination
- FFKM O-rings, gaskets, and custom parts provide excellent high temperature resistance, enabling performance in steam and thermal cycling environments
- Available in standard sizes and custom configurations, including custom profiles and geometries for specialized equipment
- Canrez® FFKM offers strong availability and competitive pricing compared to Kalrez® and Chemraz® sanitary grades
Limitations of FFKM Sanitary Gaskets, O-Rings, & Custom Parts
- FFKM sanitary gaskets have a higher upfront cost compared to EPDM or silicone sanitary materials, though lifecycle performance is often superior
- Some applications may not require full FFKM performance, making alternative materials more cost-effective for less aggressive environments
- Custom sanitary gasket designs may require tooling and engineering validation
- Lead times for certain competitor materials (Kalrez®, Chemraz®) may be longer, while Canrez® FFKM offers improved availability and faster turnaround
- Proper installation and handling are important to maintain hygienic sealing integrity and prevent damage during assembly
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
Industrial Usage of FFKM Sanitary Gaskets
FFKM sanitary gaskets, along with O-rings, custom parts, and tubes, are widely used in industries where cleanliness, chemical resistance, and temperature stability are essential. Canrez® FFKM sanitary gaskets provide long-term reliability, reduced maintenance, and improved process integrity, making them a preferred solution in high-purity applications. Canyon Components works closely with customers to ensure compliance, performance, and proper fit for each application.
Have questions about FFKM sanitary gasket solutions? Canyon Components can help you select and source Canrez® FFKM tri-clamp® sanitary gaskets, O-rings, custom parts, and tubes, including 40MP, 42MP, 4MO, flanged, and Schedule V designs built for high-purity applications.
Pharmaceutical & Bioprocessing
Used in FFKM tri-clamp sanitary gaskets for SIP/CIP systems, reactors, and fluid transfer lines, where USP Class VI and FDA compliance are required
Food & Beverage Processing
Applies FFKM sanitary gaskets in processing equipment, pipelines, and washdown systems, ensuring resistance to cleaning chemicals and high temperature steam
Biotechnology
Utilizes FFKM sanitary gaskets in high-purity fluid systems and sterile processing environments, where contamination control is critical
Chemical Processing
Employs FFKM sanitary gaskets in aggressive chemical environments requiring hygienic sealing, combining chemical resistance with cleanliness
Semiconductor & High-Purity Manufacturing
Uses FFKM gaskets and seals in ultra-clean fluid systems, where low extractables and chemical resistance are essential
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
