ASME BPE Sanitary Gaskets
Features, Applications, and Compliance in Hygienic Sealing
ASME BPE sanitary gaskets are precision sealing components designed for hygienic process systems requiring exceptional cleanliness, product purity, and regulatory compliance. Developed for use in accordance with ASME BPE (BioProcessing Equipment) standards, these sanitary gaskets are widely used throughout the pharmaceutical, biotechnology, bioprocessing, food processing, beverage, and life sciences industries. ASME BPE gasket designs help minimize dead space, support cleanability, and maintain reliable sealing performance in critical process environments where contamination control is essential.
Canyon Components supplies ASME BPE sanitary gaskets, hygienic seals, sanitary O-rings, custom molded sealing components, and bioprocess sealing solutions for pharmaceutical, biotechnology, food processing, and high-purity manufacturing systems. Our team supports standard ASME BPE gasket sizes, custom sanitary sealing solutions, material verification, compliance documentation, and engineered gasket recommendations for demanding hygienic applications.
Common names include: ASME BPE gaskets, ASME BPE sanitary gaskets, bioprocess gaskets, hygienic gaskets, sanitary process gaskets
Trade names include: ASME BPE compliant sanitary gaskets, bioprocess sealing gaskets

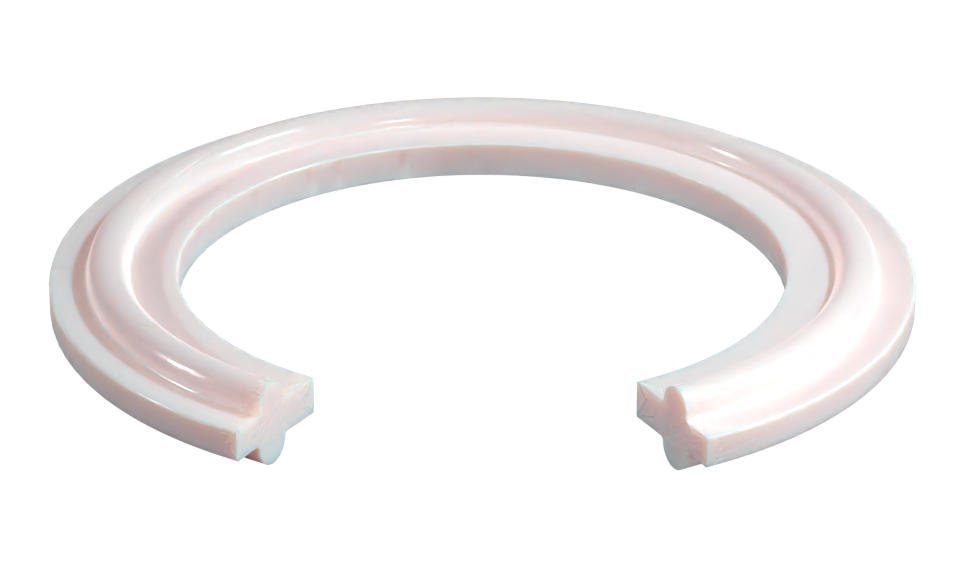

Sanitary gaskets from Canyon Components in FDA, USP Class VI, and 3A compliant materials for hygienic sealing in food and beverage processing.

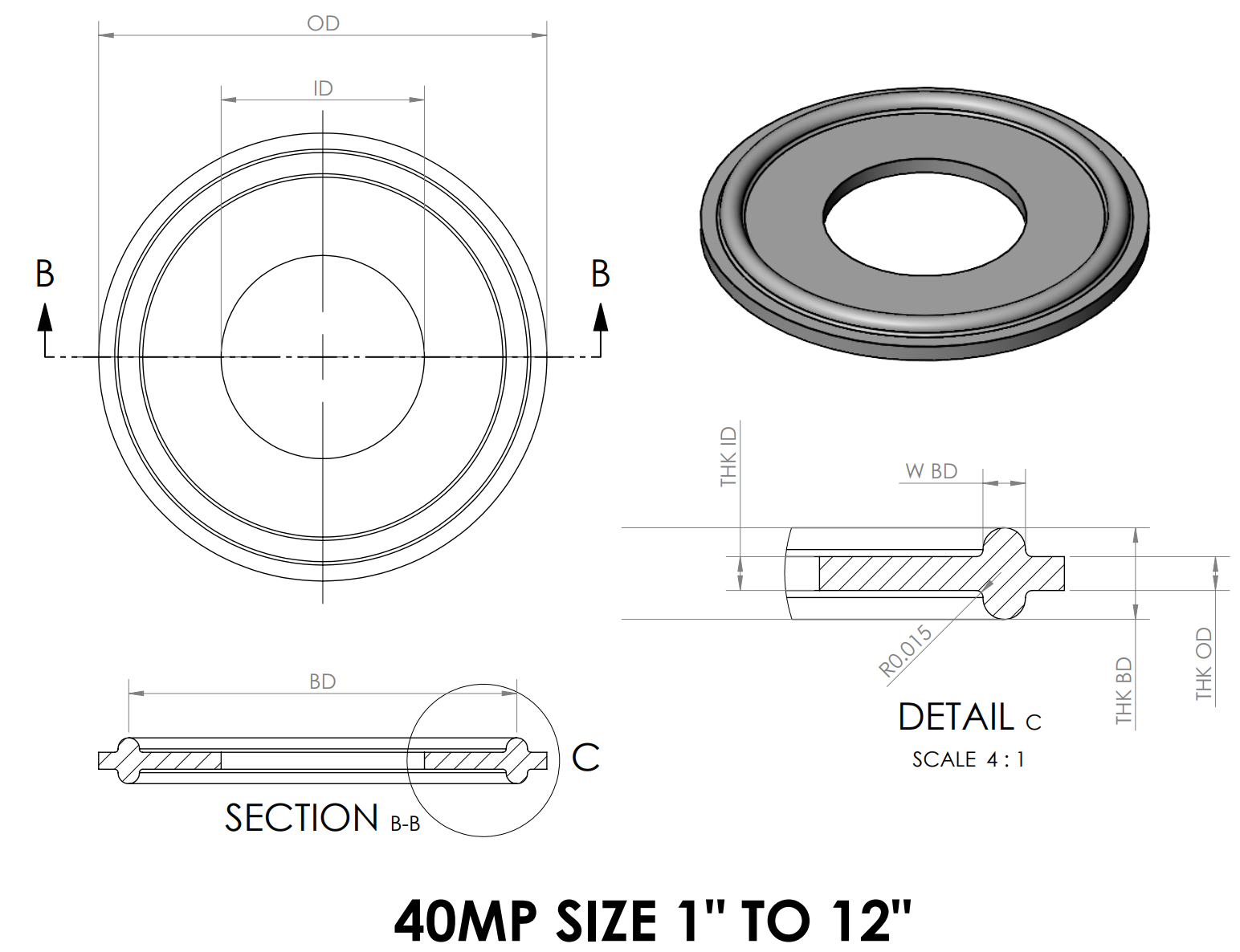

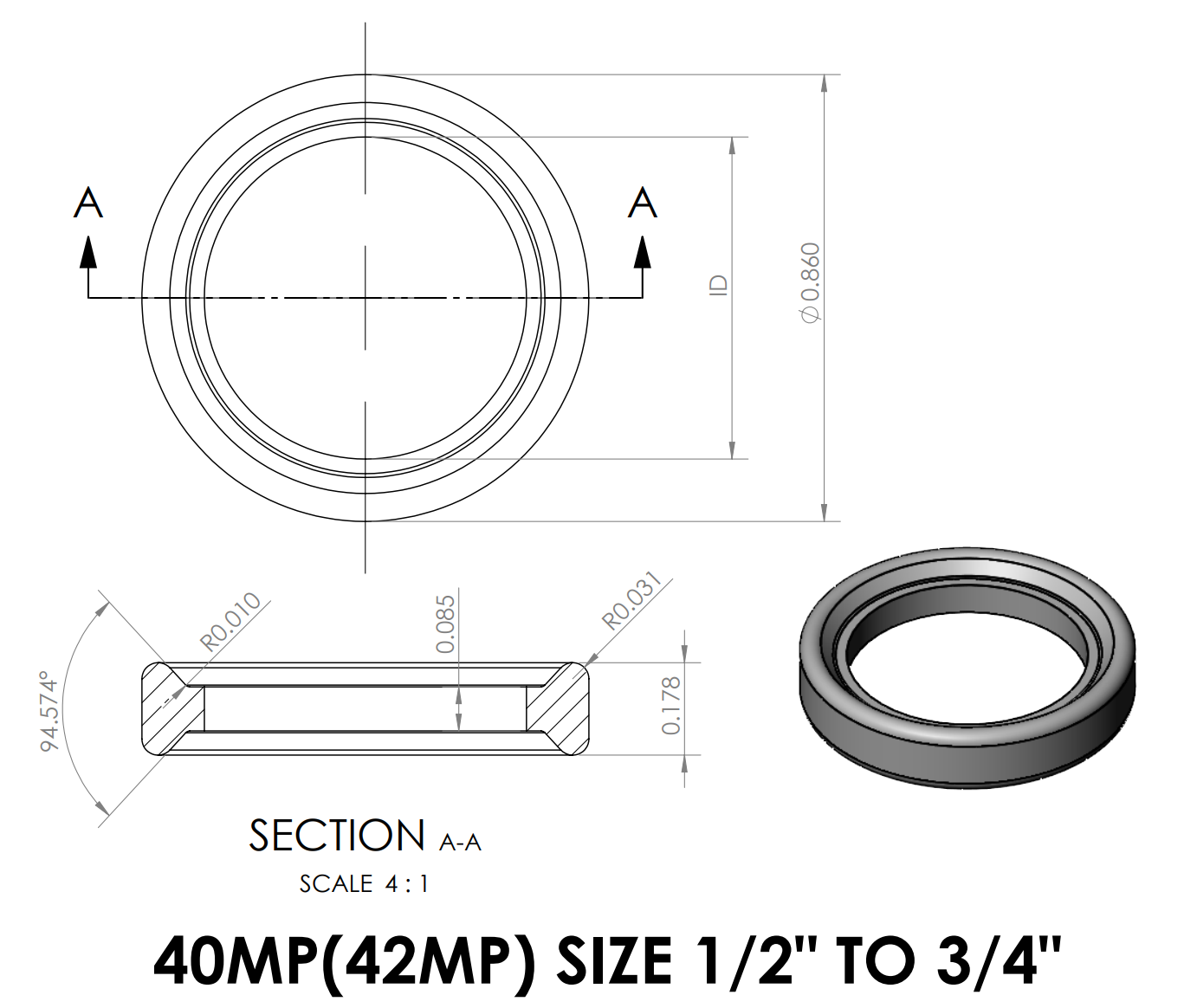

Detailed Dimensions
| Description | Dimensions (in) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Subtype | Size | Size (in) | Code | ID | OD | BD | W BD | Thk ID | Thk Bead | Thk OD | |
| 40MP Type 1 Tri-Clamp Gasket | 42MP Mini Gasket | 1/4 | 0.25 | 025 | 0.19 | 0.86 | 0.085 | 0.178 | ||||
| 40MP Type 1 Tri-Clamp Gasket | 42MP Mini Gasket | 3/8 | 0.375 | 0375 | 0.28 | 0.86 | 0.085 | 0.178 | ||||
| 40MP Type 1 Tri-Clamp Gasket | 42MP Mini Gasket | 1/2 | 0.5 | 050 | 0.38 | 0.86 | 0.085 | 0.178 | ||||
| 40MP Type 1 Tri-Clamp Gasket | 42MP Mini Gasket | 3/4 | 0.75 | 075 | 0.62 | 0.86 | 0.085 | 0.178 | ||||
| 40MP Type 1 Tri-Clamp Gasket | 1 | 1 | 100 | 0.9 | 1.984 | 1.718 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 1-1/2 | 1.5 | 150 | 1.4 | 1.984 | 1.718 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 2 | 2 | 200 | 1.9 | 2.515 | 2.218 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 2-1/2 | 2.5 | 250 | 2.4 | 3.05 | 2.781 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 3 | 3 | 300 | 2.9 | 3.579 | 3.281 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 4 | 4 | 400 | 3.87 | 4.682 | 4.344 | 0.094 | 0.085 | 0.203 | 0.075 | ||
| 40MP Type 1 Tri-Clamp Gasket | 40MO | 5 | 5 | 500 | 4.78 | 5.687 | 5.296 | 0.094 | 0.085 | 0.203 | 0.075 | |
| 40MP Type 1 Tri-Clamp Gasket | 40MO | 6 | 6 | 600 | 5.82 | 6.507 | 6.156 | 0.094 | 0.085 | 0.203 | 0.075 | |
| 40MP Type 1 Tri-Clamp Gasket | 40MO | 8 | 8 | 800 | 7.81 | 8.57 | 8.165 | 0.094 | 0.085 | 0.238 | 0.075 | |
| 40MP Type 1 Tri-Clamp Gasket | 40MO | 10 | 10 | 1000 | 9.81 | 10.57 | 10.16 | 0.094 | 0.085 | 0.238 | 0.075 | |
| 40MP Type 1 Tri-Clamp Gasket | 40MO | 12 | 12 | 1200 | 11.8 | 12.57 | 12.15 | 0.094 | 0.085 | 0.238 | 0.075 | |
Get a Quote Now!
42MP Sanitary Gaskets
42MP sanitary gaskets for Tri-Clamp fittings in food processing, dairy, beverage, and pharmaceutical systems. Hygienic seals with excellent durability and cleanability.
40MP Tri-Clamp Sanitary Gaskets - Type 1
40MP Tri-Clamp sanitary gaskets for food processing, dairy, beverage, and pharmaceutical applications. Hygienic seals designed for reliable performance and easy cleaning.
ASME BPE Sanitary Gaskets
ASME BPE sanitary gaskets for biopharmaceutical, pharmaceutical, food, and high-purity processing systems. Hygienic seals designed for cleanability, compliance, and reliability.
Canrez® FFKM Sanitary Gaskets
Discover FFKM sanitary gaskets designed for high purity and chemical resistance in food, pharmaceutical, and biotech applications. Explore Canrez® FFKM solutions for reliable sealing, compliance, and clean processing environments.
Kalrez® FFKM Sanitary Gaskets
Kalrez® FFKM sanitary gaskets for food, dairy, and pharma applications with FDA compliance, high purity, chemical resistance, and reliable sealing in CIP and SIP systems.
Features of ASME BPE Sanitary Gaskets
- ASME BPE sanitary gaskets are designed for hygienic process systems where cleanliness, product purity, and contamination control are critical
- These gaskets are commonly used in sanitary clamp connections and hygienic process equipment built to ASME BPE standards
- ASME BPE gasket designs help reduce product entrapment areas and support effective cleaning and sterilization procedures
- These gaskets are widely used in pharmaceutical manufacturing, biotechnology systems, and high-purity processing applications
- ASME BPE sanitary gaskets are available in a variety of materials to meet application-specific temperature, chemical, and regulatory requirements
- The design supports reliable sealing performance while maintaining hygienic process conditions
- ASME BPE gaskets are commonly used in process piping, valves, pumps, filtration systems, transfer lines, and bioprocess equipment
- Many gasket materials are available with FDA, USP Class VI, and other industry-specific compliance options depending on application requirements
- These gaskets are commonly used alongside sanitary O-rings, hygienic seals, and custom molded sanitary components
- Canyon Components supports material selection, compliance review, and custom sanitary sealing solutions for ASME BPE process systems
Limitations of ASME BPE Sanitary Gaskets
- Material selection must be carefully matched to process fluids, cleaning chemicals, sterilization methods, and operating temperatures
- Certain aggressive chemicals, solvents, or process conditions may require specialized gasket materials
- Steam sterilization, SIP, and CIP systems may require specific material compounds designed for repeated exposure
- Not all gasket materials provide the same level of chemical resistance, temperature resistance, or extractables performance
- Highly aggressive pharmaceutical or biotechnology applications may require specialty elastomers, PTFE, or advanced sealing materials
- Gasket service life depends on operating conditions, sterilization frequency, compression levels, and process requirements
- Regulatory requirements vary by industry and application and should be reviewed during material selection
- Proper installation and clamp loading are critical to achieving optimal sealing performance and hygienic operation
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
Get a Quote Now!
Sanitary Gasket Materials
CanRez™ FFKM Perfluoroelastomer
Extreme temperatures & chemicals require extreme solutions! CanRez™ FFKM sanitary gaskets & tri-clamp gaskets offer extreme reliability where you need it most! Thousands of sizes in stock now!
CanGuard™ RFI & EMI Shielding Materials
CanGuard™ sanitary gasket & tri-clamp gasket materials have been developed to offer superior sealing solutions with enhanced electromagnetic interference (EMI) shielding and radio frequency interference (RFI) shielding.
Kalrez® FFKM Perfluoroelastomer
Canyon Components offers Kalrez® Perfluoroelastomer (FFKM) sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts at competitive prices and with great lead-times.
Parker® Sanitary Gaskets & Tri-clamp Gaskets, O-rings, Parofluor parts, parker FKM Viton
Canyon Components offers Parker Hannifin® sanitary gaskets & tri-clamp gaskets, O-rings, Gaskets, Perfluoroelastomer (FFKM) parts, & custom molded parts at competitive prices and with great lead-times.
FKM (Viton®, Fluorocarbon)
FKM sanitary gaskets & tri-clamp gaskets, compounds, O-rings, gaskets, & custom molded parts exhibit excellent mechanical attributes as well as excellent resistance to high temperatures, mineral oil, ozone, fuels, hydraulic fluids, and many other solvents and chemicals.
Silicone (VMQ, PVMQ)
Platinum cured, USP class VI silicone sanitary gaskets & tri-clamp gaskets, seals, O-rings, gaskets, & custom molded parts are excellent for extreme temperatures in static applications. Canyon Components carries a range of silicone materials, and we are happy to custom tailor a seal to meet your application requirements!
Metal Detectable
Metal detectable sanitary gaskets are engineered for industries like food, beverage, and pharmaceuticals, where contamination prevention is essential. These gaskets contain metal additives, making them easily detectable by metal detectors. Compliant with FDA and USP Class VI standards, they enhance safety and help prevent contamination in hygienic processing environments.
X-Ray Detectable
X-ray detectable sanitary gaskets are designed for use in food, beverage, and pharmaceutical industries where contamination control is critical. These gaskets incorporate metal particles visible to X-ray equipment, ensuring foreign material detection. They meet FDA and USP Class VI standards, offering enhanced safety and compliance in hygienic processing environments.
PTFE (Teflon)
The harshest environments require specialized solutions. Often times, a Canyon Components PTFE sanitary gaskets & tri-clamp gaskets are used in harsh chemical environments. Polytetrafluoroethylene, commonly known as PTFE or Teflon®, is a high-performance fluoropolymer known for its exceptional chemical resistance, low friction, and non-stick properties.
Fluorosilicone (FVMQ)
The mechanical and physical properties of Fluorosilicone sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts are very similar to silicone. Fluorosilicone O-rings, gaskets, & custom molded parts offer improved flexibility and strength, better resistance to fuels and mineral oil, but reduced hot air resistance.
Aflas® (TFE/P)
TFE/P (Aflas) sanitary gaskets & tri-clamp gaskets, compounds, O-rings, gaskets, & custom molded parts gives high resistance to steam, hot water, atmospheric wear, and many chemicals. TFE/P compounds provide superior performance in water, steam and virtually all caustic chemicals.
EPDM (Ethylene Propylene)
EPDM sanitary gaskets & tri-clamp gaskets, materials, O-rings, gaskets, & custom molded parts can operate over a wide temperature range, and are compatible with glycol fluids that cause problems for most typical elastomeric seals.
NBR (Nitrile, Buna-N)
Nitrile sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts are very oil-resistant, have strong mechanical properties, are resistant to wear, and are relatively inexpensive. These properties make Nitrile the most commonly used general purpose O-ring, gasket, & custom molded part material.
HNBR (Hydrogenated Nitrile)
Hydrogenated Nitrile sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts offer higher strength and reduced degradation at high temperatures compared to conventional Nitrile materials. These properties make HNBR materials popular in the oil and gas industry, as well as many applications in the chemical industry.
Neoprene (CR)
Chloroprene was the first synthetic rubber, and was developed commercially under the name Neoprene®. Chloroprene sanitary gaskets & tri-clamp gaskets, rubbers, O-rings, gaskets, & custom molded parts contain Chlorine in the polymer to reduce the reactivity to many oxidizing agents, as well as to oil and flame.
Polyurethane (PU, AU)
Polyurethane sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts generally have two or three times greater tensile strength and wear resistance than Nitrile and comparable polymers. Polyurethane also provides excellent permeation resistance when compared to most rubbers.
Product Types
Custom Parts
Here at Canyon Components, we make sure to offer our customers any manufacturing technique they desire. Whether your sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom molded parts be rubber, plastic, or metal, rest assured that Canyon Components can make it!
Gaskets & Custom Cutting
Whether your custom cut parts be rubber, plastic, sponge, composite, or metal, rest assured that Canyon Components can make it! Canyon Components strives to meet all customer service requests. If you need something that isn't listed, feel free to contact a Canyon Components product and application consultant.
Specialty Compliances
Canyon have materials available for sanitary gaskets & tri-clamp gaskets, O-rings, gaskets, & custom parts with compliances ranging from USP Class VI <87> & <88> for medical applications, to FDA CFR 21.177.2600 grades A through F for different food types, to the various drinking water specifications like KTW and NSF. Whether it's metal, rubber, or plastic, Canyon can meet your needs!
