40MPF Tri-Clamp® Sanitary Gaskets - Type 2 Flanged
Features, Applications, and Compliance in Hygienic Sealing
40MPF Flanged Type 2 tri-clamp® sanitary gaskets are specialized hygienic sealing components designed for sanitary clamp connections requiring improved gasket retention, alignment, and sealing reliability. Unlike standard sanitary gaskets, the flanged Type 2 design incorporates an extended flange geometry that helps secure the gasket within the sanitary ferrule assembly during installation and maintenance. These gaskets are commonly used throughout food processing, dairy, beverage, pharmaceutical, biotechnology, and hygienic manufacturing systems where product purity and process integrity are critical.
Canyon Components supplies 40MPF Flanged Type 2 tri-clamp® sanitary gaskets, hygienic seals, sanitary O-rings, custom molded gaskets, and sanitary sealing solutions for demanding hygienic processing applications. Our team supports standard sanitary sizes, custom gasket configurations, material verification, and replacement sanitary seals for food, beverage, pharmaceutical, and industrial process systems.
Common names include: 40MPF sanitary gaskets, Type 2 sanitary gaskets, flanged sanitary gaskets, tri-clamp® flange gaskets, hygienic flange gaskets
Trade names include: 40MPF Flanged Type 2 sanitary gasket material
Relevant Specifications: Series A DIN32676, Series B ISO1127, Series C ASME BPE, ISO 2852, SMS 3019, BS 4825-3, SCH 5 BS, Special Sizes

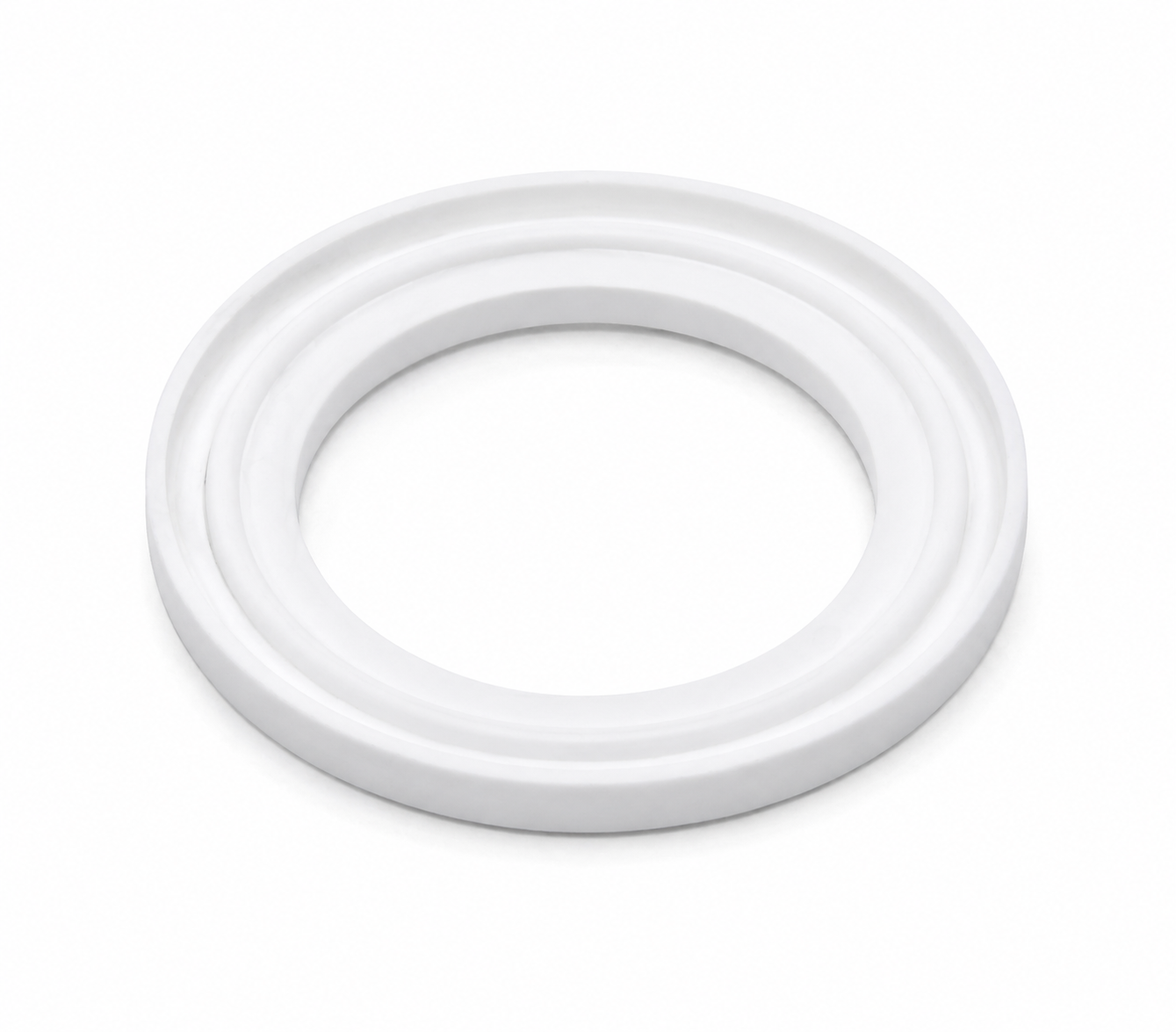

Flanged Sanitary gaskets from Canyon Components in FDA, USP Class VI, and 3A compliant materials for hygienic sealing in food and beverage processing.

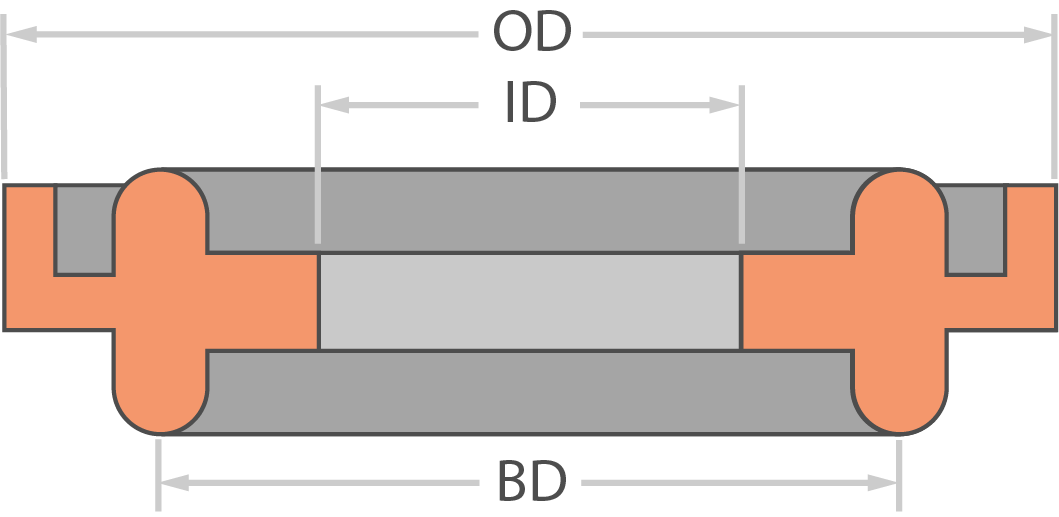

| Description | Dimensions (in) | |||||||
|---|---|---|---|---|---|---|---|---|
| Type | Subtype | Size | Size (in) | Code | ID | OD | BD | |
| 1" 40MPF Type 2 | 1 | 1 | 100 | 0.9 | 1.984 | 1.718 | ||
| 1-1/2" 40MPF Type 2 | 1-1/2 | 1.5 | 150 | 1.4 | 1.984 | 1.718 | ||
| 2" 40MPF Type 2 | 2 | 2 | 200 | 1.9 | 2.515 | 2.218 | ||
| 2-1/2" 40MPF Type 2 | 2-1/2 | 2.5 | 250 | 2.4 | 3.05 | 2.781 | ||
| 3" 40MPF Type 2 | 3 | 3 | 300 | 2.9 | 3.579 | 3.281 | ||
| 4" 40MPF Type 2 | 4 | 4 | 400 | 3.87 | 4.682 | 4.344 | ||
| 5" 40MPF Type 2 | 40MO | 5 | 5 | 500 | 4.78 | 5.687 | 5.296 | |
| 6" 40MPF Type 2 | 40MO | 6 | 6 | 600 | 5.82 | 6.507 | 6.156 | |
| 8" 40MPF Type 2 | 40MO | 8 | 8 | 800 | 7.81 | 8.57 | 8.165 | |
| 10" 40MPF Type 2 | 40MO | 10 | 10 | 1000 | 9.81 | 10.57 | 10.16 | |
| 12" 40MPF Type 2 | 40MO | 12 | 12 | 1200 | 11.8 | 12.57 | 12.15 | |
Get a Quote Now!
42MP Sanitary Gaskets
42MP sanitary gaskets for Tri-Clamp® fittings in food processing, dairy, beverage, and pharmaceutical systems. Hygienic seals with excellent durability and cleanability.
40MP Tri-Clamp® Sanitary Gaskets - Type 1
40MP Tri-Clamp® sanitary gaskets for food processing, dairy, beverage, and pharmaceutical applications. Hygienic seals designed for reliable performance and easy cleaning.
40MPF Tri-Clamp® Sanitary Gaskets - Type 2 Flanged
Explore 40MPF Type 2 flanged sanitary gaskets for Tri-Clamp® systems. Designed for secure alignment, reliable sealing, and sanitary performance in food processing, dairy, beverage, pharmaceutical, and biotech applications
ASME BPE Sanitary Gaskets
ASME BPE sanitary gaskets for biopharmaceutical, pharmaceutical, food, and high-purity processing systems. Hygienic seals designed for cleanability, compliance, and reliability.
Canrez® FFKM Sanitary Gaskets
Discover FFKM sanitary gaskets designed for high purity and chemical resistance in food, pharmaceutical, and biotech applications. Explore Canrez® FFKM solutions for reliable sealing, compliance, and clean processing environments.
Kalrez® FFKM Sanitary Gaskets
Kalrez® FFKM sanitary gaskets for food, dairy, and pharma applications with FDA compliance, high purity, chemical resistance, and reliable sealing in CIP and SIP systems.
Features of 40MPF Flanged Type 2 Sanitary Gaskets
- 40MPF Flanged Type 2 gaskets are designed for hygienic process systems requiring reliable sealing and improved gasket positioning
- The flanged design helps retain the gasket within the sanitary ferrule assembly during installation and maintenance procedures
- These gaskets are commonly used in tri-clamp® connections throughout food processing, dairy, beverage, and pharmaceutical facilities
- 40MPF sanitary gaskets help maintain hygienic process conditions while reducing the potential for gasket misalignment
- The Type 2 flange configuration assists with proper gasket placement during assembly of sanitary process equipment
- These gaskets are suitable for use in sanitary piping, valves, pumps, filtration systems, tanks, and transfer lines
- The design supports consistent sealing performance while helping maintain product purity and contamination control
- 40MPF sanitary gaskets are commonly used alongside sanitary O-rings, hygienic seals, and custom molded sanitary components
- Available in standard sanitary fitting sizes, these gaskets are compatible with common tri-clamp® process systems
- Canyon Components supports custom sanitary gasket sourcing, material selection, and hygienic sealing solutions for critical processing environments
Limitations of 40MPF Flanged Type 2 Sanitary Gaskets
- Material compatibility should always be verified against process fluids, cleaning chemicals, operating temperatures, and sanitation procedures
- Certain aggressive solvents, CIP chemicals, or sterilization methods may require alternative sanitary gasket materials
- Steam sterilization and SIP applications may require specialized compounds depending on operating conditions
- Not all sanitary gasket materials provide identical temperature resistance, chemical resistance, or regulatory compliance characteristics
- Applications involving elevated pressures or aggressive cleaning cycles should be reviewed during gasket selection
- Gasket service life depends on process conditions, cleaning frequency, compression levels, and operating environment
- Material selection should be based on process requirements, regulatory needs, and fluid compatibility
- Highly specialized pharmaceutical or biotechnology applications may require additional validation or compliance documentation
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
